Introduction to 3D seismic exploration

Imagine seeing beneath the Earth's surface with precision. 3D seismic exploration makes this possible, revolutionizing geophysical studies. But what exactly is 3D seismic exploration, and how has this technology evolved? In this post, you'll learn about its principles, methods, and vital role in modern geophysics.

Principles of 3D Seismic Technology

Understanding Seismic Waves

Seismic waves are the foundation of 3D seismic exploration. When a controlled source, such as a vibroseis truck or an explosive charge, generates energy, waves travel through the Earth’s layers. These waves move in different forms—primary (P-waves) and secondary (S-waves)—each with unique speeds and behaviors.

As waves encounter boundaries between rock layers with different properties, part of their energy reflects back to the surface. The time it takes for these reflections to return, combined with their strength, helps map the subsurface structure. Think of it like sonar used underwater, but for the Earth’s interior.

Data Acquisition Techniques

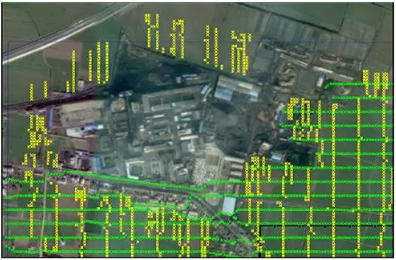

Collecting 3D seismic data requires a carefully planned grid of sources and receivers. The sources generate seismic waves, while receivers, such as geophones or ocean-bottom nodes, record the reflected signals. The layout ensures overlapping coverage, capturing data from multiple angles to create a detailed 3D image.

There are several acquisition methods:

• Towed Streamer Surveys: Common in marine environments, a ship tows long cables filled with hydrophones. As sources emit waves, hydrophones record reflections, covering large areas efficiently.

• Ocean Bottom Node (OBN) Surveys: Nodes placed on the seafloor capture data in complex marine settings, offering high-quality signals and flexibility in noisy environments.

• Land Surveys: Onshore, vibroseis trucks or explosives generate waves. Receivers, either wired geophones or wireless nodes, record reflections across a grid for comprehensive coverage.

Each method adapts to the environment, balancing cost, resolution, and logistical challenges.

Data Processing and Noise Reduction

Raw seismic data contains useful signals and unwanted noise. Processing cleans and enhances the data to reveal accurate subsurface images.

Key processing steps include:

• Deconvolution: Removes distortions caused by the seismic source, sharpening the signal.

• Migration: Corrects the position of reflections, placing them where they truly occur underground.

• Stacking: Combines multiple recordings to boost signal strength and reduce random noise.

Advanced filtering techniques remove background noise, such as waves from weather or human activity. Together, these steps transform raw data into interpretable 3D volumes.

Modern processing often uses powerful computers and algorithms to handle vast datasets. Machine learning is emerging as a tool to automate noise reduction and improve image clarity.

Methods of Acquiring 3D Seismic Data

Acquiring 3D seismic data involves several methods, each tailored to different environments and exploration needs. These methods capture seismic waves reflected from underground layers, helping us build detailed 3D images of the subsurface.

Towed Streamer Surveys

Towed streamer surveys are the most common method in marine settings. A vessel tows long cables—called streamers—filled with hydrophones that detect seismic waves. The seismic source, often an air gun, releases controlled energy pulses into the water. These pulses travel through the seabed, reflect off rock layers, and return to the hydrophones.

Advantages:

• Covers large areas efficiently

• Well-established technology

• High-quality data in open water

Limitations:

• Less effective in shallow or complex seabeds

• Movement of ship and streamers can cause noise

• Limited nearshore access

This method suits broad offshore surveys, such as those in deepwater oil exploration.

Ocean Bottom Node (OBN) Surveys

Ocean Bottom Nodes are autonomous sensors placed directly on the seafloor. Unlike towed streamers, OBNs record seismic waves closer to the source and subsurface, improving data quality, especially in complex environments.

Advantages:

• High signal quality with less noise

• Effective in shallow water, rough seabeds, or noisy areas

• Flexible receiver geometry for better imaging

Limitations:

• More expensive and logistically complex

• Requires deployment and recovery of nodes

• Limited coverage area per deployment

OBNs are ideal for geologically complex areas or where towed streamers face challenges.

Land Surveys and Coil Shooting

Onshore, seismic data acquisition uses different tools. Vibroseis trucks generate controlled vibrations, or explosives produce seismic waves. Receivers—either wired geophones or wireless nodes—record reflected waves.

Land Survey Types:

• Conventional 3D Surveys: Receivers and sources arranged in grids to cover the area.

• Coil Shooting: Seismic sources are activated in a coil or spiral pattern, increasing data density and improving subsurface imaging.

Advantages:

• Adaptable to various terrains

• Wireless nodes reduce cable logistics and improve flexibility

• Coil shooting enhances resolution in complex geology

Limitations:

• Terrain and accessibility may limit coverage

• Environmental and safety regulations affect operations

• Equipment and crew costs can be high

Summary Table of Acquisition Methods

Each method balances cost, data quality, and environmental challenges. Choosing the right acquisition technique depends on the survey goals, location, and available resources.

Applications of 3D Seismic Exploration

Hydrocarbon Exploration and Reservoir Identification

3D seismic technology is a game-changer in finding oil and gas. It creates detailed underground images, helping geoscientists spot potential hydrocarbon reservoirs. By analyzing the reflections of seismic waves, experts can detect structures like folds, faults, and traps where oil or gas might accumulate.

Using 3D seismic data, they can:

• Pinpoint the size and shape of reservoirs

• Understand rock properties such as porosity and fluid content

• Reduce the risk of drilling dry wells by targeting promising zones

For example, in offshore fields, 3D seismic helps map complex salt domes that often trap hydrocarbons. This precision saves time and money by guiding drilling to the best spots.

Mineral and Geothermal Exploration

Beyond oil and gas, 3D seismic plays a vital role in exploring minerals and geothermal resources. It helps visualize the subsurface geology, revealing rock formations that may host valuable minerals like copper, gold, or rare earth elements.

In geothermal exploration, 3D seismic data identifies heat sources and fractures that allow hot fluids to flow. This information guides drilling for sustainable energy production.

Seismic geomorphology, a technique using 3D seismic attributes, maps sedimentary features such as ancient river channels or submarine fans. These features often control mineral deposits and geothermal reservoirs. For instance, amplitude opacity rendering highlights areas where reservoir rocks are likely present, improving exploration success.

Carbon Sequestration Monitoring

3D seismic is crucial in monitoring carbon capture and storage (CCS) projects. Injecting CO₂ underground requires careful tracking to ensure it stays trapped safely.

Seismic surveys before, during, and after injection reveal how CO₂ moves through the rock layers. This monitoring helps detect leaks or migration outside the storage zone early.

By providing high-resolution images of the storage site, 3D seismic reduces environmental risks and supports regulatory compliance. It also helps optimize injection strategies to maximize storage capacity.

Interpretation of 3D Seismic Data

Seismic Attribute Analysis

Seismic attribute analysis is a powerful tool used to extract meaningful information from 3D seismic data beyond just the basic images. Attributes are measurable properties of seismic signals, such as amplitude, frequency, phase, or continuity. By analyzing these, geoscientists can highlight features that indicate rock types, fluid content, or structural details.

Common seismic attributes include:

• Amplitude: Shows the strength of the reflected seismic waves. High amplitude may indicate gas or oil presence.

• Frequency: Helps identify changes in rock properties or fluid content.

• Coherence: Measures similarity between seismic traces, useful for detecting faults and fractures.

• Instantaneous Phase: Highlights subtle stratigraphic features and layering.

Using attribute maps, interpreters can visualize complex subsurface features like channels, reefs, or fracture networks. For example, amplitude anomalies often point to hydrocarbon accumulations, while coherence can reveal fault patterns that control fluid flow.

Seismic attribute analysis also supports seismic geomorphology, which reconstructs ancient depositional environments. This method improves reservoir prediction by mapping sedimentary features such as submarine fans or fluvial channels in 3D.

Seismic Inversion Techniques

Seismic inversion transforms seismic reflection data into quantitative rock property estimates. Instead of just showing reflections, inversion predicts physical parameters like acoustic impedance, velocity, or density. These properties relate directly to rock type and fluid content.

There are several inversion types:

• Post-Stack Inversion: Uses stacked seismic data to estimate acoustic impedance. It offers a broad view of subsurface properties.

• Pre-Stack Inversion: Uses data before stacking, providing more detailed elastic properties like shear and compressional velocities.

• Model-Based Inversion: Starts with a geological model and adjusts it to fit seismic data, improving accuracy.

Inversion helps distinguish between reservoir and non-reservoir rocks and estimates porosity or fluid saturation. For instance, low acoustic impedance might indicate porous sandstone filled with hydrocarbons, while high impedance could signal dense shale.

This quantitative approach reduces uncertainty in exploration and reservoir characterization. It also supports reservoir simulation models by providing better input data.

Structural Interpretation

Structural interpretation involves analyzing 3D seismic volumes to map geological features such as faults, folds, and salt bodies. These structures often control where hydrocarbons accumulate or how fluids move underground.

Using 3D seismic data, interpreters can:

• Identify Faults: Breaks or fractures in rocks that may create traps or pathways for fluids.

• Map Folds: Bends in rock layers forming traps like anticlines.

• Detect Salt Domes: Large salt bodies that deform surrounding rocks and create complex traps.

• Understand Stratigraphic Relationships: Layers’ arrangement and thickness variations.

Advanced visualization tools let geoscientists slice through seismic volumes in any direction, revealing subtle features not visible in 2D data. They can also create 3D models of subsurface structures, improving communication and decision-making.

Structural interpretation supports drilling decisions by pinpointing safe and productive well locations. It also aids in risk assessment by identifying potential hazards like fault zones.

Challenges and Future Trends in 3D Seismic Technology

Data Quality and Processing Complexity

Ensuring high-quality data is a major challenge in 3D seismic exploration. Seismic signals often get mixed with noise from natural sources like ocean waves, wind, or human activity. This noise can mask important reflections, making it harder to interpret the subsurface accurately.

Processing 3D seismic data is complex and requires powerful computers and expert knowledge. The raw data sets are enormous, often terabytes in size, demanding advanced algorithms to clean, sort, and enhance signals. Steps like deconvolution, migration, and stacking must be carefully tuned to avoid losing subtle geological details.

Multiples, or unwanted echoes bouncing between layers, further complicate data quality. Removing multiples without damaging true signals requires sophisticated methods. Also, complex geology, such as salt bodies or fractured zones, distorts wave paths, challenging processing techniques.

Cost and Environmental Considerations

3D seismic surveys can be expensive, especially in remote or difficult environments like deepwater or rugged land areas. Costs include equipment, vessels, crews, and data processing. For example, Ocean Bottom Node (OBN) surveys offer excellent data quality but involve high deployment and retrieval expenses.

Environmental impact is another concern. Marine surveys may disturb wildlife, while land surveys can affect habitats and communities. Minimizing noise pollution, physical footprint, and disruption is crucial. Regulations increasingly demand environmental assessments and mitigation plans before surveys start.

New technologies aim to reduce costs and environmental effects. Wireless seismic nodes, for instance, cut cable use and simplify logistics. Smaller, lighter equipment lowers fuel consumption and crew size. These innovations help balance exploration needs with sustainability goals.

Advancements in Machine Learning and AI

Machine learning and artificial intelligence (AI) are transforming 3D seismic exploration. AI algorithms can automate noise reduction and signal enhancement, speeding up data processing. They learn patterns from large datasets, distinguishing useful signals from noise more effectively than traditional methods.

In interpretation, AI assists in identifying faults, fractures, and reservoir features by analyzing seismic attributes across vast volumes. This reduces human bias and increases consistency. AI also helps predict rock properties by integrating seismic data with well logs and production data.

Future trends include real-time data quality control during acquisition, allowing quick adjustments to survey parameters. AI-driven survey design optimizes source and receiver placement to maximize data quality and minimize costs.

Moreover, combining AI with cloud computing and big data analytics enables handling ever-growing datasets efficiently. This integration supports faster decision-making and better risk management in exploration projects.

Conclusion

3D seismic exploration revolutionizes resource discovery by providing detailed subsurface images, enhancing hydrocarbon and mineral identification. Future innovations, such as AI and machine learning, promise even greater accuracy and efficiency. CCTEG Xi'an Research Institute (Group) Co., Ltd. offers cutting-edge seismic technology, ensuring precise exploration and sustainable resource management. Their advanced solutions minimize environmental impact while maximizing data quality, positioning the company as a leader in the field.

FAQ

Q: What are seismic waves in 3D seismic exploration?

A: Seismic waves are energy waves generated by a controlled source, traveling through the Earth's layers to map subsurface structures.

Q: How is 3D seismic data acquired?

A: Data is acquired using methods like towed streamer surveys, ocean bottom node surveys, and land surveys, each suited to different environments.

Q: What role does AI play in 3D seismic technology?

A: AI automates noise reduction, enhances data processing, and aids in interpreting seismic attributes for better exploration outcomes.
