Views: 0 Author: Site Editor Publish Time: 2025-08-04 Origin: Site
Seismic exploration is a fascinating field that uncovers the hidden structures beneath our planet's surface. But what exactly is seismic exploration, and why is it crucial in geophysical surveys? Understanding the differences between single and multi-channel seismic surveys can help you make informed decisions for your projects. In this post, you'll learn about the configurations, benefits, and challenges of these two seismic methods."
Single Channel Seismic (SCS) surveys use a simple but effective setup. The key component is a single hydrophone array, which actually consists of multiple hydrophone elements wired together. These elements combine their signals into one channel, housed inside a plastic tube filled with silicone fluid or gel. This array is towed behind a survey vessel, alongside a seismic source like a sparker or boomer.
There are two common configurations for deploying the source and hydrophone:
Transverse: Source and hydrophone side-by-side. This setup usually works best in shallow water because it reduces phase differences between elements.
Longitudinal: Source in front of the hydrophone, aligned with the direction of the tow.
During the survey, the seismic source fires periodically. The hydrophone array records reflected sound waves bouncing off geological layers beneath the seabed. These reflections come from a midpoint roughly halfway between the source and the receiver. Moving along a survey line, the vessel collects data points to create a continuous seismic profile.
Single channel surveys offer several benefits, especially for initial exploration stages:
Simplicity: The equipment and survey design are straightforward, requiring less technical expertise.
Cost-effective: Lower equipment and operational costs make it ideal for preliminary assessments.
Quick Data Acquisition: The simple setup allows for rapid surveys over large areas.
Good for First-Pass Surveys: Provides a basic understanding of subsurface geology, helping to plan more detailed follow-up studies.
Minimal Data Processing: The data can often be interpreted with less complex processing, speeding up results.
This makes SCS a popular choice when little is known about the seabed or when budgets are tight.
Despite its advantages, single channel seismic surveys have some notable drawbacks:
Limited Resolution: The single combined channel offers lower spatial resolution compared to multi-channel surveys. This limits detail in complex geological settings.
Shallow Water Constraints: In shallow water, the array length is restricted, which can reduce data quality and depth penetration.
No Velocity Information: SCS cannot directly provide velocity data of subsurface layers, making some advanced processing techniques like migration difficult.
Multiples and Noise: It is harder to remove multiple reflections and random noise since stacking and advanced noise suppression require multiple channels.
Distortion Over Rough Seafloor: Complex seabed terrain can distort reflections, complicating interpretation.
Limited Lithological Insight: SCS data alone cannot directly reveal rock or sediment properties.
These challenges mean SCS is less suited for detailed engineering or hydrocarbon exploration where high resolution and accuracy are crucial.
Multi Channel Seismic (MCS) surveys use an array of hydrophones arranged along a long streamer towed behind a survey vessel. Unlike single channel surveys, each hydrophone or small group of hydrophones records data separately, creating multiple channels. Typical streamers have 16 to 96 channels spaced evenly, often about 1 to 3 meters apart.

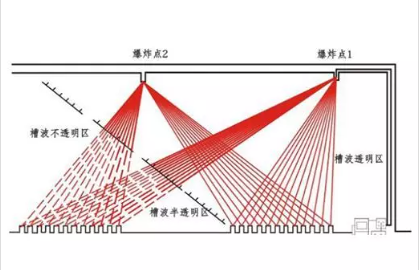

The seismic source, such as a sparker or air gun, emits sound pulses into the water. Reflections from subsurface layers are picked up by each hydrophone channel at different offsets. This setup allows recording of seismic signals from multiple mid-points beneath the seabed, improving spatial coverage and resolution.
Key equipment includes:
Multi-channel streamers: Long cables with multiple hydrophone groups.
Seismic sources: Air guns or sparkers producing controlled acoustic pulses.
Recording systems: Digitize and store data from each channel separately.
The geometry of MCS surveys allows for precise sampling of subsurface reflections at many common mid-points (CMP), which is essential for advanced data processing techniques like stacking and migration.
Multi channel surveys offer several advantages over single channel methods:
Higher Data Quality: Multiple channels enable stacking of seismic signals, improving the signal-to-noise ratio significantly. Noise can be suppressed more effectively, revealing clearer reflections.
Better Resolution: Fine spatial sampling of reflections provides higher vertical and lateral resolution, crucial for detailed geological interpretation.
Velocity Information: MCS data allow estimation of seismic velocity in subsurface layers, enabling accurate depth conversion and migration corrections.
Flexibility in Processing: Advanced processing techniques, such as multiple attenuation and wavefield separation, can be applied, enhancing data quality further.
3D Imaging Capability: Multiple streamers can be deployed simultaneously for 3D seismic surveys, offering volumetric subsurface models rather than simple 2D profiles.
These benefits make MCS surveys ideal for complex geological settings and detailed investigations, including hydrocarbon exploration and engineering site characterization.
In offshore engineering, MCS surveys provide essential data for safe and efficient project planning. Examples include:
Wind Farm Development: Accurate seabed and shallow subsurface imaging helps in foundation design and cable routing.
Pipeline and Cable Installation: Detailed profiles detect hazards like gas pockets or fault zones that could damage infrastructure.
Oil and Gas Exploration: High-resolution structural maps identify reservoirs and assess risks.
Geohazard Assessment: Faults, landslides, and shallow gas accumulations can be mapped to prevent operational hazards.
For instance, multi channel sparker systems with 24 or 48 channels have been used to identify shallow gas accumulations and faults critical for offshore wind farm safety (example case: Aegean Sea studies, requires verification).
Single channel seismic surveys gather data from one combined hydrophone array channel. This simplicity limits spatial resolution and detail. The single channel records reflections from a broader area, making it harder to distinguish small or complex features beneath the seabed. Noise reduction is also limited because stacking multiple channels isn’t possible. As a result, random noise and multiples remain harder to suppress.
In contrast, multi channel seismic surveys use numerous hydrophone channels spaced along a streamer. Each channel records data separately, allowing for stacking and advanced noise suppression. This stacking improves the signal-to-noise ratio, revealing clearer, sharper images of subsurface layers. The finer spatial sampling enhances vertical and lateral resolution, crucial for identifying faults, gas pockets, or sediment layers.
For example, multi channel systems can detect subtle geological structures or shallow gas accumulations that single channel surveys might miss. This makes multi channel data invaluable for detailed geological mapping and engineering assessments.
Single channel surveys win on cost and simplicity. Their equipment is lighter, easier to deploy, and requires less technical expertise. Data processing is straightforward, often needing minimal post-processing. This makes single channel surveys suitable for quick, first-pass reconnaissance or budget-limited projects.
Multi channel surveys demand more investment. The equipment includes long streamers with many hydrophones, complex recording systems, and often powerful seismic sources. Deployment requires skilled crews and more vessel time. Data processing is computationally intensive, involving stacking, velocity analysis, and migration. This complexity increases operational costs and time but yields richer data.
Choosing between the two often depends on project goals and budget. If detailed subsurface imaging is critical, multi channel surveys justify the higher cost. For broad, preliminary surveys, single channel methods suffice.
Single channel surveys work well in simple, shallow water environments where high resolution isn’t essential. Their limited array length suits shallow depths but struggles with complex seabed topography. Reflections may distort over rough terrain, complicating interpretation.
Multi channel surveys excel in varied geological settings, especially where detailed imaging is needed. Their ability to estimate subsurface velocity helps correct distortions caused by complex topography. They handle deeper water and complex stratigraphy better, making them ideal for hydrocarbon exploration, offshore wind farm site investigations, and geohazard assessments.
For instance, multi channel sparker systems have been successfully used to detect faults and shallow gas in offshore wind farm areas, providing data critical for safe foundation design (example case: Aegean Sea studies, requires verification).
In seismic surveys, the signal-to-noise ratio (SNR) is crucial. It measures how clearly the useful seismic reflections stand out from background noise. A higher SNR means better data quality and easier interpretation.
Single channel seismic (SCS) surveys improve SNR by combining signals from multiple hydrophone elements into one channel. This boosts sensitivity but doesn’t allow stacking—the process of combining multiple recordings to reduce noise. Without stacking, random noise and multiples (unwanted reflected signals) remain harder to suppress.
Multi channel seismic (MCS) surveys, however, record signals on many separate channels. This setup enables stacking across channels and shots. Stacking averages out random noise, significantly improving SNR. Also, multi channel data allows advanced noise reduction techniques like f-x deconvolution and predictive filtering. These methods separate coherent signals from noise, sharpening the seismic image.
For example, in a six-channel setup, stacking can improve SNR by roughly the square root of six (~2.45 times). This makes subtle geological features visible that single channel surveys might miss. Such enhancements are vital in complex or noisy environments, like offshore wind farm sites or hydrocarbon basins.
Post-processing transforms raw seismic data into clearer images of the subsurface. The techniques vary depending on whether data is from single or multi channel surveys.
Single Channel Processing:
Band-pass filtering removes unwanted frequencies.
Gain adjustments compensate for signal loss with depth.
Trace mixing and f-x deconvolution help reduce noise, though effectiveness is limited without multiple channels.
Migration, which corrects for dipping layers and complex structures, is challenging because velocity information is unavailable from single channel data.
Multi Channel Processing:
All single channel steps apply, but multi channel data supports more advanced processes.
Velocity analysis estimates seismic velocities across layers, essential for accurate migration.
Stacking combines traces from common mid-points, enhancing SNR and suppressing multiples.
Multiple attenuation techniques remove repeated reflections that obscure true signals.
Wavefield separation isolates different wave types for clearer interpretation.
3D seismic processing creates volumetric images, improving spatial understanding.
These post-processing steps make multi channel surveys far more powerful for detailed geological studies. For instance, multi channel sparker data can be processed to reveal shallow gas pockets or fault zones critical for offshore engineering.
Interpreting seismic data involves identifying geological features from seismic reflections. Several challenges arise, especially in single channel data:
Limited Resolution: Single channel data’s lower resolution can blur small or complex features.
Multiples and Noise: Without stacking, multiples distort true reflections, complicating interpretation.
Velocity Uncertainty: Lack of velocity data makes depth conversion and migration uncertain.
Seafloor Complexity: Rough seabed topography distorts reflections, making it harder to distinguish layers.
Lithological Ambiguity: Seismic reflections alone don’t directly reveal rock types or physical properties.
Multi channel data eases many of these issues. Velocity models improve depth accuracy. Multiples and noise are better suppressed. Higher resolution reveals finer details. However, interpreting multi channel data requires expertise and sophisticated software.
For example, offshore wind farm surveys use multi channel sparker data to detect faults and shallow gas, helping avoid hazards during foundation installation. Joint interpretation of multi-resolution data (multi channel plus high-resolution single channel) can also clarify shallow gas seepage linked to deeper faults.
Seismic exploration keeps evolving thanks to new technologies. One big change is the rise of multi-channel sparker systems. These can have 24, 48, or more channels, combining the high resolution of sparkers with multi-channel benefits. This advancement boosts data quality and depth penetration, making it easier to detect subtle features like shallow gas pockets or faults.
Another trend is improved digital acquisition systems. Modern units digitize signals with higher accuracy, reducing noise and preserving signal integrity. They also simplify data handling by using Ethernet outputs and software that can run on common laptops. This makes high-quality seismic surveys more accessible and efficient.
Additionally, new processing algorithms enhance signal-to-noise ratio and remove multiples even in challenging environments. For example, predictive deconvolution and f-x deconvolution techniques help clean sparker data, which traditionally has complex waveforms. These processing improvements allow clearer images from both single and multi-channel surveys.
Combining data from different seismic sources is becoming standard practice. Multi-channel seismic (MCS) data reveal deeper structures but usually at moderate resolution. High-resolution single-channel data, like sparker or Chirp sub-bottom profilers, image shallow sediments with fine detail.
By integrating these datasets, geophysicists can link shallow features to deeper geology. For instance, faults detected in MCS data can be traced to their expression in shallow layers using sparker data. This joint interpretation improves understanding of fluid pathways, gas accumulations, and geohazards.
Processing multi-resolution data together requires careful calibration and velocity modeling. Velocity information from MCS helps migrate and position high-resolution data accurately. This approach has been successfully applied in offshore wind farm site surveys, identifying hazards that might otherwise be missed.
Future seismic surveys will play an even bigger role in offshore engineering projects. The demand for safe and cost-effective wind farm construction drives the need for detailed subsurface imaging. Multi-channel sparker systems combined with high-resolution profilers provide the necessary data.
Better seismic images reduce risks from shallow gas, faults, and unstable sediments. They also help optimize foundation design and cable routing, lowering project costs. Moreover, advanced processing can extend the weather window for surveys, speeding up operations.
Oil and gas exploration benefits too, as multi-resolution seismic data improve reservoir characterization and hazard detection. Overall, these trends mean offshore projects will rely more on integrated seismic surveys, combining the strengths of both single and multi-channel methods.
Single channel seismic surveys offer simplicity and cost-effectiveness for initial subsurface imaging, while multi-channel surveys provide higher resolution and detailed geological analysis. Future trends in seismic exploration focus on technological advancements and integrating multi-resolution data for improved offshore project safety and efficiency. Companies like CCTEG Xi'an Research Institute (Group) Co., Ltd. provide innovative seismic solutions, enhancing data quality and decision-making in marine environments. Their products ensure precise, efficient, and versatile seismic surveys, supporting informed geophysical assessments and engineering projects.
A: SCS surveys are used for initial subsurface imaging, offering a cost-effective and simple approach for broad reconnaissance.
A: MCS surveys use multiple hydrophone channels for higher resolution and detailed geological analysis, ideal for complex settings.
A: MCS surveys provide higher data quality, better resolution, velocity information, and flexibility in processing, suitable for detailed investigations.
A: SCS surveys have limited resolution, shallow water constraints, and difficulty in noise suppression, making them less suited for detailed analysis.
