Views: 0 Author: Site Editor Publish Time: 2025-08-22 Origin: Site
Drilling deep holes takes more than just pushing a bit through metal or wood. You need patience, planning, and a focus on safety. Many people run into problems like tool bending, drill walking, or chips getting stuck. These mistakes can break your drill or ruin your project. Heavy tool wear and heat build-up make things even harder, especially when you drill tough materials.
Common Deep Hole Drilling Challenges | Impact on Your Work |
|---|---|
Drill walking and tool bending | Crooked or broken holes |
Chip clogging | Drill breakage, tool damage |
High heat and tool wear | Shorter tool life, rough holes |
Drilling slow and steady helps prevent these issues. Good prep and the right technique make a big difference.
Pick the right drill bits, core bits, and rods for your job. Make sure they match the material you are drilling. This helps you drill straighter and faster. It also keeps you safer.
Check your equipment every day. Fix problems early. This keeps your tools working well. It also helps you avoid accidents.
Hold your workpiece tightly with clamps. Make sure it is lined up right. This stops holes from being crooked. It also protects your tools from damage.
Start holes slowly with center drills and pilot holes. These help guide the drill. They also lower tool wear and breakage.
Use the right speed and feed. Use coolant and remove chips the right way. This keeps drills cool and clears chips. It helps you drill straight holes safely.
Choosing the right tools is the first step to success in deep hole drilling. You want to make sure every part of your setup matches the job. The right drill bits, core bits, and rods can help you drill straighter, faster, and safer. If you pick the wrong tools, you might face slow progress, tool breakage, or crooked holes.
Drill bits do most of the hard work in deep hole drilling. You need to match the bit type and cutter material to the hardness of the rock or metal. For tough jobs, premium bits like impregnated-diamond or advanced PDC bits last longer and cut better. Bit design matters, too. Bits with higher crowns and center holes let fluid flow through, which cools the bit and flushes out chips. This keeps your hole clean and helps prevent tool damage.
Here are some expert tips for picking drill bits for deep hole drilling:
Use longer gauge bits (3–4 inches or more) for better stability in vertical holes.
Choose shorter gauge bits (less than 2 inches) if you need to steer the drill.
Pick aggressive cutters for faster drilling, but know they may wear out quicker.
Look for bits with more blades to reduce vibration and keep the hole smooth.
Adjust bit hydraulics, like nozzle size and flow rate, to keep the hole clean.
Core bits help you collect samples while drilling deep holes. You want a core bit that matches your material and drilling needs. Some core bits have special crowns or extra openings for fluid delivery. This design helps cool the bit and remove chips, making deep hole drilling smoother and safer.
Drill rods connect your drill bit to the machine. Strong, straight rods keep your drilling on track. If you use weak or bent rods, your hole may wander or your tools may break. Always check that your rods fit your bits and core bits. Good rods also help deliver fluid to the bit, which is key for deep hole drilling.

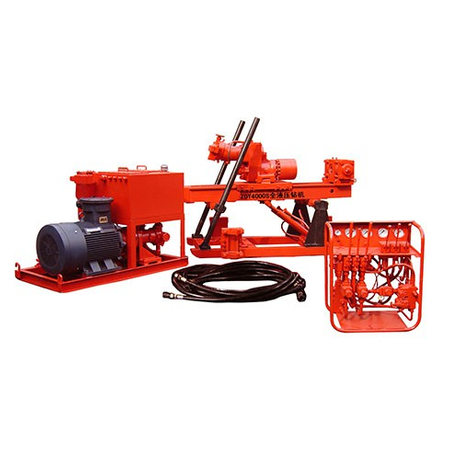

CCTEG Xi'an offers a full range of drilling equipment, including high-quality drill bits, core bits, and rods. Their products help you tackle deep hole drilling challenges with confidence. Want to learn more? Reach out to their team for expert advice and solutions.
Checking your equipment often keeps your drilling safe and easy. You want to find problems early. This stops them from getting worse. If you skip checks, your tools can break. Your holes might not be straight. You could even get hurt.
You should look at your drilling equipment every day. Check for dirt, leaks, and worn parts. Most manufacturers say to check your tools every day. Do deeper checks every week and month. Preventive maintenance helps your tools last longer. Change fluids and tighten bolts often. This keeps your drilling work correct.
Here's a quick checklist for daily and scheduled maintenance:
Task | Frequency | Why It Matters |
|---|---|---|
Visual inspection | Daily | Spots leaks and wear |
Lubrication | Scheduled | Reduces friction |
Fluid replacement | Weekly/Monthly | Prevents overheating |
Fastener tightening | Weekly | Maintains stability |
Electrical system test | Monthly | Ensures safe operation |
Calibration | Monthly | Keeps drilling straight |
Some common problems are loose spindle bearings and worn guide sleeves. Chipped reamer teeth can also cause trouble. These issues can make your drilling go off track. They can also damage your tools. You can stop most problems by using the right materials. Sharpen your tools the right way. Keep your coolant clean and fresh. If you find problems early, you save time and money.
Tip: Checking your tools every day helps you find small problems. Fixing them early keeps your drilling safe and smooth.
Always check the chuck before you start drilling. Make sure it holds the tool tight. If the chuck is loose, the drill bit can slip. This can make your holes crooked. It can also break your tools. Always take out the chuck key after you tighten it. Leaving it in can cause accidents when you start the machine.
Here's a simple safety list for chuck inspection:
Lock the tool tight in the chuck.
Take out the chuck key before turning on the drill.
Check if the chuck moves or feels loose.
Replace any chucks that are worn or broken.
Checking your equipment often means less downtime. It keeps your drilling safe. You can spot dangers early and make your tools last longer. You also avoid expensive repairs. When you check your tools all the time, your drilling projects go better and safer.
Setting up your workpiece the right way makes a huge difference when drilling deep holes. If you skip this step or rush through it, you risk crooked holes, tool damage, or even accidents. Let's break down what you need to do before you start drilling.
You want your workpiece to stay put. If it moves, your holes will not be straight. You might even break your drill bit. Here are some tips to keep things steady:
Use clamps or a sturdy vice to hold the material tight.
Never hold the workpiece by hand. It can slip and cause injury.
Try special fixturing mechanisms for odd shapes or heavy pieces.
Double-check that the workpiece does not wiggle before you start.
Tip: Mark the drill entry point before clamping. This helps you line up the drill and keeps your holes accurate.
A secure setup keeps your hands safe and your holes clean. You avoid wasted material and rework.
Getting the alignment right is just as important as clamping. If your drill bit starts off at the wrong angle, it will drift. You end up with holes that wander or miss the mark. Even a small misalignment can cause big problems, especially in deep holes.
Improper alignment leads to drill drift, wobbling, and vibrations. You might see holes that are off-center or rough inside. Machines designed for deep hole drilling use counter-rotation to keep everything lined up. This means both the drill and the workpiece spin in opposite directions. It helps reduce drift and keeps your holes straight.
You can use these techniques to improve alignment:
Use a spot drill to make a small dimple at the start point.
Pick the right drill bit for your material. Sharp bits help prevent wobble.
Set up your machine with rigid fixtures and holders.
Try pilot holes before drilling the final size.
Watch for odd noises or shaking. These signs mean you need to check your setup.
A good setup saves you time and money. You get holes that look clean and fit your needs.
Getting the start right makes deep hole drilling much easier. If you rush this step, you might see crooked holes or broken drill bits. Let's look at how you can set yourself up for success.
You want your drill to hit the exact spot every time. A center drill helps you do that. It creates a small dimple at the entry point. This dimple guides the main drill and keeps it from wandering. You get a clean start, even on rough or sloped surfaces.
Here's why center drills matter:
They make a larger point angle, which helps the deep hole drill stay on the centerline.
They stop drill walking, so your holes stay straight.
They lower the risk of breaking the cutting edge when you begin drilling.
Tip: Always use a new or freshly sharpened center drill. Dull tools can slip and ruin your work.
A pilot hole acts like a guide for your deep hole drill. It keeps everything lined up and makes drilling smoother. You drill a pilot hole to a depth of one to two times the diameter of your final hole. This gives your main drill a path to follow.
Benefits of pilot holes:
They keep the drill on track, so your holes stay straight and accurate.
They help coolant flow better, which removes chips and keeps the drill cool.
They extend tool life by lowering stress and wear.
They reduce friction and heat, so you see fewer broken bits.
Here's a simple process for starting deep hole drilling:
Step | What You Do | Why It Helps |
|---|---|---|
1 | Use a center drill | Guides the main drill, prevents wandering |
2 | Drill a pilot hole | Keeps alignment, improves chip removal |
3 | Switch off spindle when entering | Stops drill from slapping sides |
4 | Use a sequence of sharp drills | Maintains accuracy, reduces breakage |
5 | Maintain uniform feed | Prevents tool wandering |
You can also drill from both ends of the workpiece if possible. This method helps minimize wandering and keeps your holes straight.
Note: Proper sizing and placement of pilot holes matter. If the pilot hole is too small, it won't guide the drill. If it's too large, you lose stability.
Starting your holes the right way means fewer mistakes, longer tool life, and better results every time you drill.
Drilling deep holes takes patience and the right approach. You want to avoid mistakes that can ruin your project or damage your tools. Let's look at how you can get better results by controlling speed, feed, and keeping your holes straight.
You need to slow down when drilling deep holes. Fast drilling creates heat and wears out your drill bit. It also makes chips harder to remove. Most machinists use lower speeds and feeds as the hole gets deeper. Peck drilling helps too. You pull the drill out every so often to clear chips and cool things down.
Here's a handy table for recommended chip loads in deep hole drilling:
Material Type | Chip Load (in/tooth) | Notes |
|---|---|---|
Aluminum (6061) | 0.005 - 0.010 | Reduce speed/feed past 5 diameters |
Brass | 0.005 - 0.010 | Adjust for hole depth |
Cast Iron (Ductile) | 0.004 - 0.008 | Peck drilling for deep holes |
Cast Iron (Gray) | 0.002 - 0.006 | Peck drilling past 5 diameters |
Copper Alloy (Wrought) | 0.004 - 0.008 | Lower feed for soft materials |
Magnesium Alloy | 0.005 - 0.010 | Similar to aluminum |
Stainless Steel | 0.002 - 0.006 | Use parabolic flute drills |
Steel (Mild) | 0.002 - 0.010 | Adjust for depth and hardness |
Steel (Hard Alloy) | 0.002 - 0.006 | Use special drills, reduce feed |
Steel (Tool) | 0.002 - 0.006 | Same as hard alloy steel |
Tip: As you drill deeper, always lower your feed rate. This keeps your drill bit cool and helps you avoid tool breakage.
Keeping your holes straight is a big challenge in deep hole drilling. If your drill wanders, you get crooked holes and wasted material. You can use these methods to prevent deviation:
Start with a pilot hole using a short, rigid drill bit.
Use gun drills that have single-lip cutting edges and internal coolant channels.
Set up high-pressure coolant close to the cutting edge.
Keep your drilling speed and feed steady to avoid stress.
Use guided bushings or laser alignment tools for extra accuracy.
Accurate hole collaring helps you avoid misalignment.
Control your feed pressure. Too much pressure bends the drill.
Watch for soft layers in your material. These can make the drill wander.
Good maintenance and clean coolant keep your drilling on track.
Some drills can reach depths up to 100 times their diameter. You need the right setup and careful technique to go that deep. If you follow these tips, you will see better results and fewer problems when drilling deep holes.
Keeping your drill cool and clearing chips is a must in deep hole drilling. If you skip this step, you risk tool damage, rough holes, or even a broken drill. Let's look at how you can use the right fluids and chip removal systems to make your drilling smoother and safer.
You need the right cutting fluid to keep things cool. Deep hole drilling creates a lot of heat. Water-soluble fluids, like synthetics and semi-synthetics, work best for cooling and flushing chips away. Straight oils give great lubrication but do not cool as well. Many shops use a mix—straight oils for lubrication and high-pressure synthetic fluids for cooling and chip removal.
Here are some top choices for cutting fluids in deep hole drilling:
Straight oils or heavy-duty oil-based fluids for friction reduction.
Water-soluble fluids (synthetic or semi-synthetic) for cooling and chip flushing.
High-pressure coolant systems using synthetic fluids for the best chip evacuation.
Through-coolant tools help a lot. They send coolant right to the cutting edge, flushing chips out and stopping clogs. This keeps your drill bit cool and helps it last longer. High-pressure coolant also stops vapor barriers from forming, so you get steady cooling and less tool wear. Studies show that boosting coolant flow can drop cutting edge temperatures by up to 28%. That means longer tool life and smoother drilling.
Tip: Always check your coolant for particles. Clean, particle-free fluid keeps your system running well and avoids clogs.
Chips can ruin your deep hole drilling if you do not clear them out. They can jam the drill, scratch the hole, or even snap your bit. You need a good chip removal system to keep things moving.
Here's a quick look at common chip removal systems:
System | How It Works | Best For | Key Benefit |
|---|---|---|---|
Gun Drilling | Coolant pushes chips out a V-shaped flute | Small, deep holes | High precision, tight holes |
BTA Drilling | Coolant flows outside, chips exit through tube | Medium to large holes | Fast, efficient chip removal |
Ejector Drills | Dual tubes for chip and coolant flow | Various hole sizes | Fast, clean drilling |
You want to use high-pressure coolant and the right system for your hole size. Gun drilling works well for small, deep holes. BTA drilling handles bigger holes and keeps chips moving fast. Ejector drills give you speed and clean holes for many sizes.
Remember: Stop often to clear chips if you do not have an automatic system. Clean chips mean less tool damage and better holes.
If you keep your coolant flowing and chips moving, you will see better results in every deep hole drilling job.
Staying safe while drilling is very important. Deep hole drilling has special dangers. You must use the right safety gear and follow good habits.
Personal protective equipment, or PPE, keeps you safe. It protects you from flying chips, loud sounds, and chemical splashes. Always put on your gear before you drill. Here is what safety groups say you should wear:
Safety glasses, goggles, or face shields keep chips and coolant out of your eyes.
Cut-resistant gloves protect your hands from sharp things.
Special gloves, like leather or chemical-resistant ones, help with hot parts or chemicals.
Earplugs or earmuffs keep your ears safe from loud noise.
Flame-retardant aprons protect you from sparks.
Steel-toe boots or S3 safety shoes keep your feet safe from heavy tools and spills.
Wear clothes that fit close to your body so nothing gets caught.
Use machine guards and emergency stops for more safety.
Follow OSHA and ISO rules at all times.
Get trained before you use any drilling equipment.
Tip: Check your PPE for damage before you start. If something is worn out, replace it right away.
You can stop most accidents by using safe drilling steps. Many accidents happen when people skip steps or use tools wrong. Here are some dangers and how to avoid them:
Safety Incident Type | Description / Examples | Prevention Strategies |
|---|---|---|
Drill Rig Overturns | Rigs can fall over if the ground is weak or you use them wrong. | Check the ground, follow rules, get trained, and use safe lifting plans. |
Equipment Misuse | Using rigs as cranes or lifting things the wrong way can hurt people. | Only use tools the right way, train workers, and follow the maker's rules. |
General Drilling Hazards | Fires, explosions, chemical spills, broken machines, or slips can happen anywhere. | Be ready for emergencies, keep machines in good shape, wear PPE, train often, and keep work areas clean and bright. |
You should also:
Test safety devices like crown block stops often.
Use air intake shutdowns on diesel engines.
Put safe pressure limits near the driller's controls.
Watch drilling fluids for leaks or gas.
Have emergency plans and make sure everyone knows them.
Remember: Most injuries happen when people hurry or skip safety steps. Go slow and check everything twice.
You now know seven important tips for drilling deep holes. If you get ready, check your tools, and use good methods, you will drill straighter holes. Your tools will last longer too.
Watching cutting forces and using peck drilling helps you find problems early. This keeps your holes straight.
Planning, setting up right, and checking often means less waiting and safer drilling.
Many groups have saved time and money by drilling better and making their tools last longer.
Try these steps and you will get better results each time you drill.
You can drill up to 10 times the diameter of your drill bit using regular tools. Specialized deep hole drills can reach 100 times the diameter. Always check your equipment limits before starting.
Start with a pilot hole. Use a rigid drill bit. Keep your speed and feed steady. Guided bushings or laser alignment tools help you stay on track.
Drill bits break because of heat, chip buildup, or misalignment. You can prevent this by using coolant, clearing chips often, and checking your setup before drilling.
Water-soluble fluids cool your drill and flush chips away. Straight oils reduce friction. Many shops use a mix for better results. Always keep your fluid clean.
