Imagine seeing beneath the Earth's surface with precision. Seismic acquisition makes this possible, crucial for oil and gas exploration. But what's the difference between 2D and 3D seismic methods? In this post, you'll learn how these methods work, their importance in the industry, and what sets them apart.
2D seismic acquisition is the traditional method used to image the subsurface. It involves sending seismic waves into the ground along a single straight line or a series of parallel lines. When these waves hit underground layers, they bounce back and are captured by sensors called geophones on land or hydrophones in water. The recorded signals create a two-dimensional cross-sectional image of the subsurface, much like a slice through the Earth.
The process starts by generating seismic energy, often with a controlled source such as a vibroseis truck on land or air guns offshore. This energy travels downward, reflects off geological boundaries, and returns to the surface where sensors detect it. The data collected along the line is processed to produce a profile showing the depth and arrangement of rock layers beneath.
Single Line Data Collection: Sensors are arranged in a straight line, capturing reflections only along that path. This limits the view to a flat, cross-sectional image.
Lower Cost: Because it requires fewer sensors and simpler equipment, 2D surveys are generally cheaper and quicker than 3D surveys.
Simpler Data Processing: The data volume is smaller, making processing and interpretation faster and less complex.
Limited Detail: The images show less detail and resolution, which can make it hard to interpret complex subsurface structures accurately.
2D seismic is widely used for initial exploration, especially over large areas where detailed imaging is not yet necessary. It helps identify general geological features like sedimentary layers, faults, and major structural traps. This method is useful in early-stage projects to guide where more detailed studies might be needed.
However, 2D seismic has its limits. Because it only captures data along lines, it can miss important variations between those lines. Complex features such as salt domes, fault networks, or small reservoirs may not be clearly visible. This can lead to uncertainty in locating drilling targets or estimating reservoir size.
In summary, 2D seismic acquisition provides a cost-effective, broad overview of the subsurface. It remains valuable for regional exploration and preliminary studies but lacks the detailed accuracy required for precise reservoir characterization or production planning.

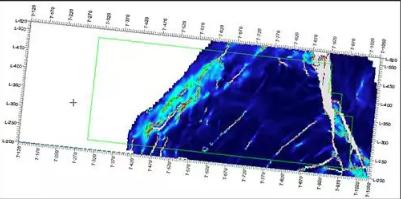

3D seismic acquisition captures a detailed, three-dimensional picture of the subsurface. Instead of collecting data along a single line like 2D seismic, it uses a grid of seismic sources and receivers spread over an area. This grid arrangement allows seismic waves to be sent and recorded from many directions, creating a volume of data that represents the underground geology in three dimensions.
The process begins by generating seismic energy, often using air guns offshore or vibroseis trucks on land, similar to 2D methods. However, in 3D acquisition, multiple seismic sources fire in a carefully planned sequence, while arrays of sensors (geophones or hydrophones) are laid out in a dense grid pattern. The reflected seismic waves are recorded from many points, providing overlapping coverage of the subsurface.
This dense, multi-directional data is then processed using advanced computer algorithms. Processing steps include noise reduction, velocity analysis, stacking, and migration, which reposition seismic reflections to their correct locations in space. The result is a detailed 3D model of the subsurface that can be sliced and examined from any angle.
Grid-Based Data Collection: Sensors and sources form a mesh that covers an area, capturing reflections from multiple directions and angles.
High Data Volume: This method generates large datasets, requiring powerful computing resources for processing and interpretation.
Enhanced Spatial Resolution: The 3D model reveals complex geological features more accurately than 2D cross sections.
Complex Processing: Advanced algorithms and software are essential for handling and interpreting the data effectively.
Time-Consuming and Costly: The acquisition and processing phases take longer and cost more due to the scale and complexity.
3D seismic acquisition offers many advantages over 2D. The detailed images help geologists and engineers better understand complex subsurface structures such as fault networks, salt domes, and stratigraphic traps. This improved resolution reduces uncertainty in identifying drilling targets and estimating reservoir size.
In exploration, 3D seismic is invaluable for pinpointing promising locations and designing well paths. During production, it supports reservoir management by monitoring changes over time, sometimes through 4D seismic surveys (time-lapse 3D seismic).
Beyond oil and gas, 3D seismic aids geothermal energy projects, carbon capture and storage, and mineral exploration. Its ability to visualize subsurface features in detail makes it a versatile tool across many geoscience fields.
The most obvious difference between 2D and 3D seismic acquisition lies in how data is collected. In 2D seismic, sensors are arranged along single lines. This means data represents vertical slices through the Earth. It’s like looking at a map drawn on a single sheet of paper. The data is simpler and smaller, so processing is faster and less demanding on computers.
In contrast, 3D seismic uses a grid of sensors covering an area. This grid captures seismic waves from many directions, creating a three-dimensional volume of data. Because of this, 3D data is much larger and more complex. Processing requires advanced algorithms to clean noise, analyze wave velocities, stack signals, and migrate reflections to the right locations. This extensive processing produces a detailed 3D image that can be viewed from any angle.
The difference affects how interpreters analyze the data too. With 2D, they study individual lines and try to connect features between them, which can be tricky. 3D data allows direct visualization of structures in three dimensions, making it easier to understand complex geology.
Cost is a big factor when choosing between 2D and 3D seismic. 2D surveys are less expensive because they need fewer sensors, simpler equipment, and less time in the field. Processing 2D data is also cheaper due to smaller volumes and simpler algorithms. This makes 2D seismic attractive for early exploration over large areas or when budgets are tight.
3D seismic, however, is more costly. The dense grid of sources and receivers requires more equipment and longer field operations. Processing demands powerful computers and specialized software, adding to the expense. Despite the higher cost, 3D surveys often save money in the long run by reducing drilling risks and improving reservoir understanding.
Accuracy and resolution are where 3D seismic truly shines. Because it collects data from many angles and positions, 3D seismic can resolve subtle features such as small faults, channels, or stratigraphic traps that 2D might miss. This higher resolution reduces uncertainty in mapping reservoirs and planning wells.
2D seismic provides a simpler, flatter image. It can miss variations between survey lines and sometimes misrepresent complex structures. While useful for general mapping, it lacks the detail needed for precise reservoir characterization or production optimization.
In summary, 2D seismic offers a cost-effective, straightforward view of subsurface geology, best for broad exploration. 3D seismic provides detailed, accurate images at higher cost and complexity, ideal for detailed evaluation and production planning. The choice depends on project goals, budget, and required detail level.
Seismic data plays a crucial role in guiding drilling and production activities. Both 2D and 3D seismic surveys help identify where to drill wells by revealing underground structures like traps and reservoirs. However, 3D seismic provides a more precise picture, enabling engineers to plan well paths that avoid hazards and target the richest zones. This reduces the risk of dry wells and improves drilling success rates.
During production, seismic monitoring helps track how fluids move inside reservoirs. Techniques like 4D seismic—time-lapse 3D surveys—show changes over time, revealing areas where oil or gas is being depleted or where water is encroaching. This information guides decisions on well placement, enhanced recovery methods, and production optimization, extending the life of the field and maximizing output.
Seismic acquisition impacts resource management by improving estimates of reservoir size and quality. Detailed 3D seismic data allows geoscientists to map reservoir boundaries more accurately. This reduces uncertainty in volume calculations, helping companies plan development strategies and allocate resources efficiently.
Better imaging also aids in identifying compartmentalization within reservoirs—zones separated by faults or barriers that trap fluids differently. Understanding these compartments ensures targeted extraction, avoiding overproduction or leaving valuable hydrocarbons behind. Overall, seismic data supports smarter decision-making, balancing economic returns and environmental stewardship.
While oil and gas remain primary users, seismic acquisition finds growing applications in other fields:
Geothermal Energy: Seismic surveys help locate hot rock formations and map fractures that allow heat extraction, supporting clean energy projects.
Carbon Capture and Storage (CCS): Monitoring underground CO₂ injection sites uses seismic data to ensure safe containment and track plume movement.
Mineral Exploration: Seismic imaging reveals structures hosting valuable minerals, improving exploration success.
Environmental Studies: Mapping subsurface features aids in groundwater management and assessing geological hazards.
Offshore Wind Energy: Seismic data assists in site selection by characterizing seabed conditions and identifying potential risks.
These expanding uses highlight seismic acquisition’s versatility beyond hydrocarbons, contributing to sustainable resource development and environmental protection.
Seismic acquisition technology has evolved rapidly, improving data quality and operational efficiency. One major innovation is the use of autonomous and remotely operated vehicles (AUVs and ROVs) for marine seismic surveys. These systems can deploy sensors and sources more flexibly, reducing vessel time and costs while increasing data coverage.
Another breakthrough is the development of nodal seismic systems. Unlike traditional cable-based sensors, nodal systems use wireless, battery-powered units placed directly on the seabed or land surface. This setup allows denser sensor arrays, easier deployment, and better data quality in challenging environments.
Advances in source technology also play a role. For example, modern air gun arrays produce cleaner, more controlled seismic signals, enhancing resolution. On land, vibroseis trucks now use optimized sweep patterns to maximize energy delivery and reduce environmental impact.
Finally, machine learning and artificial intelligence (AI) are transforming seismic data processing and interpretation. AI algorithms help automate noise removal, velocity model building, and fault detection, speeding up workflows and improving accuracy.
Looking ahead, seismic acquisition will likely become more integrated with other geophysical methods, such as electromagnetic surveys and gravity data. This multi-physics approach promises richer subsurface models.
Distributed Acoustic Sensing (DAS) is another exciting trend. DAS uses fiber optic cables as seismic sensors, turning existing telecom infrastructure into dense seismic arrays. This could revolutionize land seismic by drastically reducing deployment time and cost.
The rise of 4D seismic (time-lapse 3D seismic) will continue. It enables monitoring reservoir changes during production, supporting smarter resource management. Future surveys may become more frequent and targeted, aided by real-time data processing.
Environmental considerations will drive innovation too. New sources and acquisition methods aim to minimize noise pollution and ecological disturbance, especially in sensitive marine areas.
Technological advances have boosted seismic acquisition efficiency. Automated systems reduce manual labor, lowering operational risks and costs. Wireless nodes cut cable handling time, speeding deployment and retrieval.
Improved data quality means fewer re-surveys and better decision-making, reducing costly drilling errors. AI-powered processing shortens interpretation timelines, helping companies respond faster to evolving project needs.
While some new technologies require higher upfront investment, they often pay off through enhanced accuracy and operational savings. For example, 3D nodal surveys may cost more initially but yield clearer images, reducing uncertainty and drilling risks.
Overall, these advancements help balance the trade-off between cost, speed, and data quality, enabling projects to choose seismic methods best suited to their goals and budgets.
2D and 3D seismic acquisition differ in data collection, cost, and accuracy. 2D offers a cost-effective overview, while 3D provides detailed, accurate images. The choice depends on project goals and budget. Future advancements in seismic technology promise enhanced efficiency and data quality. CCTEG Xi'an Research Institute (Group) Co., Ltd. offers innovative seismic solutions, providing valuable insights for exploration and production. Their products enhance decision-making and reduce risks, supporting industries in achieving optimal results through advanced subsurface imaging.
A: 2D seismic acquisition is a method to image the subsurface using seismic waves along a single line to create a two-dimensional cross-sectional image.
A: 3D seismic uses a grid of sensors to capture data from multiple directions, creating a detailed three-dimensional model of the subsurface.
A: 3D seismic offers enhanced spatial resolution and accuracy, revealing complex geological features more clearly than 2D.
A: Seismic acquisition is used in geothermal energy, carbon capture and storage, mineral exploration, environmental studies, and offshore wind energy.
