PDC drill bits are essential tools in modern drilling operations. But which type is best for your needs—matrix body or steel body? In this article, we'll explore the differences between these two popular PDC drill bits. We'll explain their construction, performance, and when to choose one over the other. By the end, you'll know which bit is right for your drilling projects.

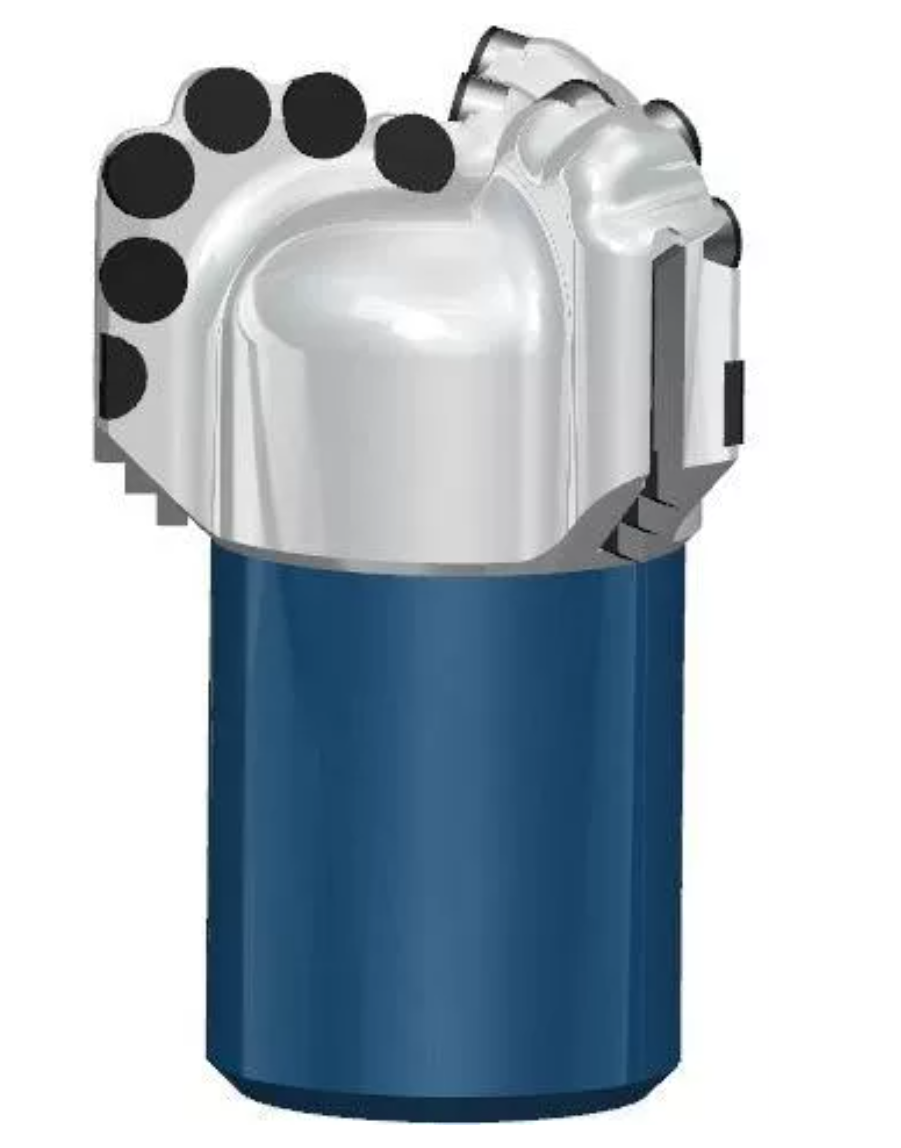

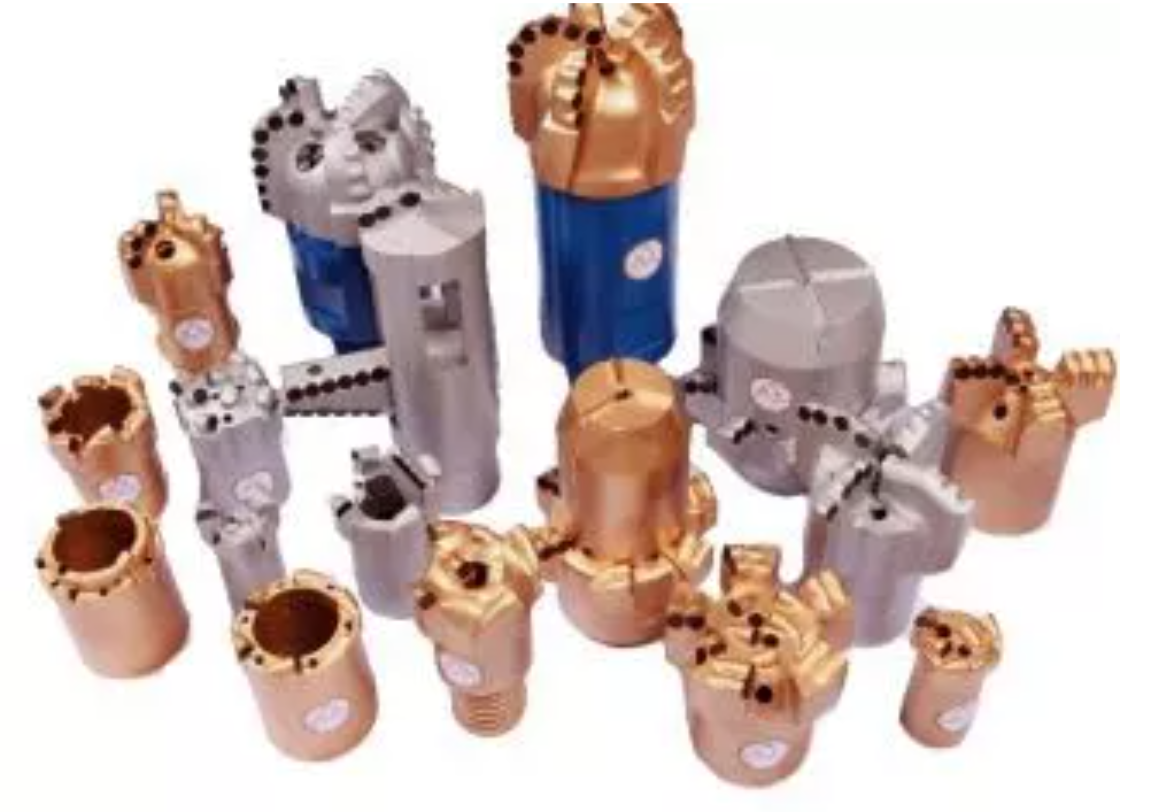

PDC drill bits are powerful tools used in drilling operations. They are equipped with cutters made from synthetic diamonds, which are bonded to the bit’s body. These bits are designed to efficiently cut through hard rock formations by shearing, not crushing the material. They are essential in industries like oil, gas, and mining.
Matrix body PDC drill bits are made from a composite material that combines tungsten carbide grains and a metallic binder. This material is chosen for its ability to resist wear and handle harsh conditions. These bits are designed to be durable in abrasive environments, such as those with high fluid volumes or sandy conditions.
● Composition: Tungsten carbide grains mixed with a metallic binder.
● Performance: Excellent wear resistance, ideal for long runs in abrasive formations.
● Manufacturing: Created using a mold-based process, where the materials are heated, cooled, and assembled into the final shape.
Steel body PDC drill bits are built using high alloy steel. This material provides strength and impact resistance, making these bits more suitable for challenging drilling conditions that involve high-impact or hard rock formations. Steel body bits are also easier to repair, offering a cost-effective solution over multiple drilling runs.
● Composition: High alloy steel.
● Performance: Designed to resist high impacts and provide flexibility in challenging conditions.
● Manufacturing: These bits are machined from steel bars and then welded with diamond cutters to form the final drill bit.
● Matrix Body: Made from tungsten carbide, matrix bits offer excellent wear resistance. However, they are brittle and struggle under high-impact conditions. The hardness of tungsten carbide provides excellent erosion resistance but lacks the flexibility to handle impacts.
● Steel Body: Constructed from high alloy steel, steel body bits offer strong impact resistance and greater flexibility. They are less likely to crack under stress but tend to wear more quickly in abrasive conditions.
Condition | Matrix Body PDC Bits | Steel Body PDC Bits |
Abrasive Environments | Excellent, high wear resistance | Prone to wear over time |
High-Impact Conditions | Not ideal, brittle under stress | Great, handles impacts well |
Long Lifespan | Ideal for long runs in abrasive conditions | Requires more frequent maintenance and repairs |
● Matrix Body: Best for drilling in abrasive formations, providing long lifespan in high-sand or fluid-heavy environments.
● Steel Body: Best suited for high-impact conditions, like hard rock formations, but requires more frequent repairs and maintenance.
Feature | Matrix Body PDC Bits | Steel Body PDC Bits |
Repairability | Non-repairable, needs cutter replacement | Easy to repair and refurbish |
Maintenance Frequency | High maintenance due to non-repairability | Lower maintenance, can be refurbished |
● Matrix Body: These bits cannot be repaired. Once the cutters wear down, they must be replaced entirely, which increases overall maintenance costs.
● Steel Body: Steel bits can be repaired easily. Cutters can be replaced, and the body can be refurbished, lowering long-term maintenance costs.
Factor | Matrix Body PDC Bits | Steel Body PDC Bits |
Initial Cost | Higher due to tungsten carbide material | More affordable, lower initial cost |
Long-Term Costs | Higher replacement costs due to non-repairability | Cost-effective, lower due to repairability |
● Matrix Body: Matrix bits are more expensive up front due to the cost of tungsten carbide. However, they last longer in abrasive conditions, so they may be worth the investment for specific drilling projects.
● Steel Body: Steel bits are more affordable initially. Over time, their repairability can lead to cost savings, especially in high-impact conditions.
Matrix body PDC drill bits are designed for optimal performance in abrasive conditions. Made with tungsten carbide, they excel in resisting wear from tough formations. This makes them perfect for drilling through hard rock, high-sand, or fluid-heavy environments.
● Why Matrix Body Bits Are Ideal for Abrasive Formations
○ Matrix bits resist erosion, making them last longer in abrasive environments.
○ Their wear resistance helps extend the bit's lifespan, reducing the need for frequent replacements.
● Long-Term Use
○ Matrix bits can withstand extended use in challenging conditions, making them ideal for long drilling operations.
○ The combination of high durability and resistance to wear makes them a go-to choice for industries requiring reliability over time.
Steel body PDC bits are built for strength. They can withstand high-impact drilling, making them suitable for harder formations and situations where sudden shocks may occur. Steel's flexibility is a key factor in their ability to endure these conditions.
● How Steel Body Bits Perform Better in High-Impact Drilling
○ Steel body bits handle impacts much better than matrix bits due to their toughness.
○ In environments where the drill bit is likely to encounter rock or other hard material, steel body bits provide superior protection.
● Cost-Effectiveness Due to Repairability
○ Steel body bits can be easily repaired and refurbished, which significantly lowers long-term maintenance costs.
○ When the cutters wear out, they can simply be replaced, and the bit can be reconditioned, allowing for multiple uses.
Advantage | Matrix Body PDC Bits | Steel Body PDC Bits |
Wear Resistance | Excellent, lasts in abrasive environments | Lower resistance, wears out faster in abrasives |
Impact Resistance | Low, brittle under high impacts | High, withstands impacts well |
Repairability | Non-repairable, cutter replacement needed | Easy to repair, replace cutters |
Ideal Use | Long-term use in abrasive conditions | High-impact drilling, easy to refurbish |
When it comes to cost, the initial investment in matrix body and steel body PDC drill bits varies significantly.
● Matrix Bits: These bits are more expensive upfront due to the use of tungsten carbide. Tungsten carbide is a premium material, known for its high wear resistance, but it increases the bit's cost.
● Steel Bits: Steel body PDC drill bits are generally more affordable initially. The steel material is less costly than tungsten carbide, making these bits easier to purchase.
Type | Initial Investment | Long-Term Costs |
Matrix Bits | Higher, due to tungsten carbide | Higher, due to frequent replacements |
Steel Bits | Lower upfront cost | Cost-effective, with repairability |
● Steel Bits: Steel body bits can be easily refurbished. When the cutters wear down, they can be replaced, and the bit body can be reconditioned. This reduces the need for frequent purchases of new bits, lowering long-term costs.
● Matrix Bits: Unfortunately, matrix body bits cannot be repaired. Once the cutters are worn or damaged, the entire bit must be replaced. This leads to higher replacement costs over time.
Repairability | Matrix Bits | Steel Bits |
Repair | Non-repairable, needs full replacement | Easy to repair, cutters can be replaced |
Replacement | Higher long-term costs due to replacement | Lower long-term costs due to refurbishing |
Choosing between matrix and steel bits depends on balancing upfront costs against long-term maintenance and replacement expenses.
The durability of both matrix and steel body PDC drill bits largely depends on the drilling environment.
● Matrix Bits: These bits excel in abrasive environments, such as those with high levels of sand or fluid. The tungsten carbide material resists wear and erosion, making matrix bits perfect for these tough conditions.
● Steel Bits: Steel body bits are designed for high-impact environments. They perform well in hard rock or tough formations, where impacts are frequent. However, in abrasive environments, steel bits wear down faster than matrix bits.
Drilling Environment | Matrix Body PDC Bits | Steel Body PDC Bits |
Abrasive Conditions | Excellent wear resistance | Prone to quicker wear |
High-Impact Conditions | Not ideal, brittle under impact | Great at handling impacts |
● Matrix Body: Matrix bits offer a longer lifespan in abrasive conditions due to their wear-resistant properties. However, because they are more brittle, they require frequent replacements after extended use. They perform well over time but are costly to replace.
● Steel Body: Steel body bits tend to last longer in high-impact conditions. They can endure repeated use in hard rock formations. However, they require regular maintenance, including repairs and reconditioning, to maintain performance.
Type of Bit | Lifespan in Abrasive Environments | Lifespan in High-Impact Conditions | Maintenance |
Matrix Body PDC Bits | Longer lifespan, but frequent replacement | Shorter lifespan in high-impact conditions | Low maintenance, but costly replacement |
Steel Body PDC Bits | Shorter lifespan in abrasive environments | Longer lifespan in high-impact conditions | Regular maintenance and repairs |
When selecting the right PDC drill bit for your project, several factors should guide your decision.
● Drilling Conditions:
○ Consider whether you will be drilling in environments with a lot of sand and abrasives, or in high-impact rock formations.Impact: Steel body bits perform better under high-impact conditions, like hard rock drilling.
○ Abrasion: Matrix body bits excel in abrasive environments, where wear resistance is key.
● Project Duration:
○ The length of your drilling project impacts the type of drill bit you should choose.Short-term Projects: For projects that will not last long, steel body bits may be more cost-effective due to their repairability.
○ Long-term Projects: If your project involves extended use, matrix body bits may be more efficient in abrasive environments, as they last longer.
● Budget Considerations:
○ Budget plays a crucial role in your choice. Consider both the initial cost and long-term maintenance.Initial Cost: Steel body bits are usually cheaper upfront.
○ Maintenance Costs: Matrix bits have higher initial costs but require less frequent maintenance compared to steel body bits, which need regular repairs.
Matrix body PDC bits are ideal for certain conditions where performance and durability in abrasive environments are critical.
● High Sand or Abrasive Conditions:
● These bits shine in environments filled with abrasive materials, such as sandy formations. The wear-resistant properties of tungsten carbide help matrix bits last longer in such conditions.Projects Requiring Extended Bit Life:
If your project demands extended use with minimal downtime for maintenance, matrix body bits are the better choice. Their durability means they can withstand longer drilling sessions without needing to be replaced as frequently.
Steel body PDC bits are great for conditions that involve frequent impacts and where cost-effectiveness is a priority.
● High-Impact Drilling Environments:
● Steel body bits are more suitable for drilling in hard rock formations or any environment where high-impact stress occurs. Their flexibility and strength make them resistant to breakage and cracks in these harsh conditions.Projects with Frequent Repairs and Cost-Effective Maintenance:
If you are working on a project where frequent repairs are necessary, steel body PDC bits offer a cost-effective solution. They are easily refurbished, allowing for extended use without the need to purchase new bits regularly.
Factor | Matrix Body PDC Bits | Steel Body PDC Bits |
Drilling Conditions | Best for abrasive environments | Best for high-impact conditions |
Project Duration | Ideal for long-term projects | Suitable for short-term or intense work |
Budget | Higher initial cost, less frequent maintenance | Lower upfront cost, higher maintenance costs |
Maintenance | Low maintenance, high replacement costs | Regular maintenance, repairable |
Matrix body PDC drill bits are best for abrasive conditions due to their superior wear resistance, while steel body bits excel in high-impact environments and offer better repairability. When choosing the right drill bit, consider the specific needs of your project, including drilling conditions, budget, and the duration of use. Make an informed decision to optimize performance and reduce long-term costs.If you're unsure about which PDC drill bit is right for you, you can contact the experts at CCTEG Xi'an Research Institute (Group) Co., Ltd.. We offer customized PDC drill bits and consultations to help you find the perfect solution.
Q: Which PDC drill bit is best for abrasive environments?
Matrix body PDC bits excel in abrasive environments due to their superior wear resistance.
Q: Can steel body PDC drill bits be repaired?
Yes, steel body bits can be easily refurbished and repaired, extending their lifespan.
Q: Why are matrix body PDC bits more expensive?
Matrix bits use tungsten carbide, which is more expensive than the steel used in steel body bits.
Q: Are matrix body bits suitable for high-impact drilling?
No, matrix body bits are better for abrasive conditions and have low impact resistance.
