What's the secret to successful drilling? It all starts with the right drill bit. Choosing between PDC (Polycrystalline Diamond Compact) and Tricone bits can make or break a project.
In this article, we'll explore the differences between these two types of drill bits. You'll learn how each bit performs, when to use them, and why choosing correctly can save you time and money.

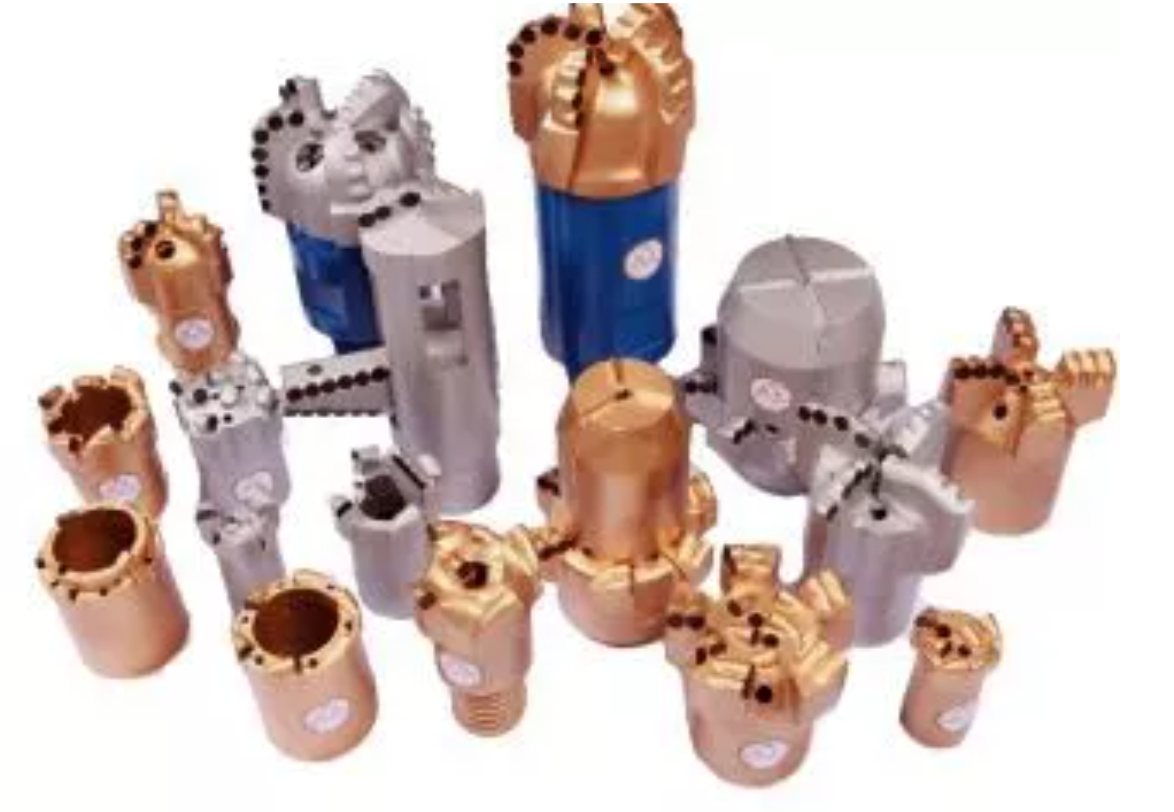

A PDC bit is a type of drill bit featuring a fixed cutter design. Unlike traditional bits, it has no moving parts. The cutting surface consists of synthetic diamonds bonded to a tungsten carbide substrate, creating a highly durable tool.
These bits are commonly used in a range of industries, such as oil and gas drilling, geothermal energy, mining, and water well drilling. Their efficient performance makes them ideal for tackling tough formations.
PDC bits rely on a shearing mechanism to break rock. As the bit rotates, the diamonds embedded in the cutters shear through the material, slicing rather than grinding it. This process is quicker and more efficient than traditional grinding methods.
The lack of moving parts means less wear and tear on the bit. This not only boosts its durability but also reduces the need for frequent maintenance, which can be costly and time-consuming.
PDC bits are known for their long-lasting durability. The diamond-impregnated cutters are tough enough to withstand abrasive rock formations.
Unlike rotating bits, the fixed cutter design of PDC bits allows for consistent cutting performance. They excel in drilling through harder formations, like shale and limestone, which can cause faster wear on other bits.
Key features of PDC bits include:
● Durability: Diamond-impregnated cutters resist wear.
● Fixed Cutter Design: No moving parts reduce maintenance needs.
● Versatility: Ideal for tough rock formations like shale and limestone.
A Tricone bit consists of three rotating cones, each equipped with cutting teeth. These cones work together to crush and grind rock, making them highly effective in a variety of drilling environments.
Tricone bits were first invented in the early 1930s by engineer Ralph Neuhaus. Since then, they have evolved significantly, incorporating advancements like Tungsten Carbide inserts and sealed journal bearings. This evolution has helped them maintain their relevance in modern drilling operations.
Tricone bits are commonly used in water well drilling, mining, and drilling through soft to medium-hard formations. They are particularly versatile and well-suited for applications where a variety of rock types are encountered.
Tricone bits work through the rotation of three cones, which are equipped with sharp teeth. As the bit turns, these cones grind and crush the rock. This process breaks the material into smaller pieces, allowing the drilling to progress.
One critical aspect of Tricone bit performance is lubrication. The moving parts require constant lubrication to reduce friction and wear. Without proper maintenance, parts could fail, leading to costly downtime. Regular maintenance is essential for optimal performance.
Tricone bits feature moving parts, which are a key factor in their efficiency. The rotating cones help break through both soft and harder formations. However, the moving components also require careful monitoring and lubrication to prevent failure.
Key features of Tricone bits include:
● Moving Parts: Rotating cones create a crushing action that helps in drilling through tough formations.
● Versatility: Effective in a range of formations, from soft to hard rock.
● Tungsten Carbide Inserts: These inserts improve the durability of the cutting teeth, making the bit more resistant to wear.
Feature | PDC Bits | Tricone Bits |
Design | Fixed cutter, no moving parts | Rotating cones, moving parts |
Speed and Efficiency | Faster Rate of Penetration, better in hard formations | Slower Rate of Penetration, better for soft formations |
Durability and Lifespan | More durable, lasts longer | Prone to wear, shorter lifespan |
Maintenance | Low maintenance, requires no lubrication | High maintenance, requires lubrication |
Cost | Higher initial cost, cost-effective long-term | Lower initial cost, higher long-term cost |
The table above summarizes the key differences between PDC and Tricone bits. PDC bits feature a fixed cutter design, making them more reliable and efficient, particularly in hard rock formations. Their faster rate of penetration and longer lifespan are due to fewer moving parts, which also makes them easier to maintain. Although they have a higher upfront cost, they offer better cost efficiency in the long run.
In contrast, Tricone bits have rotating cones and are slower in hard formations, but they perform well in softer formations. They require more maintenance, including regular lubrication, and tend to wear out faster due to their moving parts. This results in higher long-term costs, even though they have a lower initial purchase price.
PDC bits are best suited for hard, abrasive rock formations like shale, limestone, and sandstone. Their efficient cutting ability allows them to handle tough materials with ease. These bits excel in deep well drilling, where high-speed performance is crucial.
If your project requires minimal maintenance and a long lifespan, PDC bits are the way to go. Their fixed cutter design means less wear and tear, reducing downtime and the need for frequent replacements.
Tricone bits are ideal for mixed and softer formations, such as sand, clay, or gravel. Their rotating cones provide versatility, making them suitable for drilling through various rock types in one project.
If your project is budget-conscious, Tricone bits offer a lower initial cost. They are perfect for drilling operations where upfront cost is a concern but may require more maintenance over time due to their moving parts.
Feature | PDC Bits | Tricone Bits |
Advantages | ||
Drilling Speed | Fast drilling in hard formations | Versatile across various formations |
Lifespan | Long lifespan, fewer replacements | High impact resistance in tough formations |
Maintenance | Lower maintenance costs | Lower initial cost |
Disadvantages | ||
Breakage in Tough Formations | Can break under extreme pressure | Requires frequent maintenance and lubrication |
Initial Cost | Higher initial cost | Potential for part loss in boreholes |
The table above provides a clear comparison of the pros and cons of PDC and Tricone bits.
● PDC Bits offer fast drilling speeds, a long lifespan, and lower maintenance costs, making them ideal for high-efficiency drilling in hard formations. However, they can break under extreme conditions and have a higher initial cost.
● Tricone Bits are versatile, effective across various formations, and come at a lower upfront cost. They also have high impact resistance, which is useful for hard rock formations. However, they require more maintenance and have the potential for part loss during drilling, which can increase costs over time.
Factor | PDC Bits | Tricone Bits |
Geological Conditions | Best for hard, abrasive formations like shale, limestone | Best for soft and mixed formations like sand, clay |
Project Scale | Ideal for large-scale operations | Ideal for small-scale or budget-conscious projects |
Speed vs. Cost | Faster drilling speeds, higher efficiency in hard rock | Slower drilling, more affordable upfront |
Maintenance Requirements | Low maintenance, fewer replacements | Requires frequent lubrication and maintenance |
Scenario: A project requires drilling through deep, hard shale formations. The drilling speed and efficiency are crucial, as the project needs to be completed quickly and within budget.
Why PDC Bits are the Best Choice: PDC bits are designed for high-speed drilling, making them perfect for drilling through hard, abrasive formations. Their fast rate of penetration reduces drilling time, and their long lifespan minimizes the need for replacements. Given the demanding conditions, PDC bits are more efficient and cost-effective for this project.
Scenario: A water well drilling project is underway in softer soil formations, where the focus is on budget and versatility, not speed.
Why Tricone Bits are More Effective: Tricone bits are highly versatile and work well in a range of softer formations like sand and clay. With a lower initial cost, they make the most sense for smaller or budget-conscious projects. While they require more maintenance, their adaptability in softer ground makes them an ideal choice for this water well drilling project.
● PDC Bits: Best for large-scale projects, tough formations, and when speed and efficiency are essential. Ideal for deep drilling with a focus on long-term performance and lower maintenance.
● Tricone Bits: More suitable for smaller projects, mixed formations, or when initial costs are a concern. They offer versatility but require more maintenance, making them better for softer formations.
In summary, PDC bits are ideal for fast drilling in hard formations, offering durability and low maintenance. Tricone bits excel in versatility, working well in softer formations, and are more affordable initially but require more maintenance.
When choosing a drill bit, consider factors like geological conditions, project scale, and maintenance needs. If you're unsure about which drill bit is right for you, you can contact the experts at CCTEG Xi'an Research Institute (Group) Co., Ltd.. We will help you find the perfect solution.
PDC bits are faster and last longer, making them ideal for hard formations. They require less maintenance and offer high efficiency. Tricone bits, however, are more versatile and work well in mixed formations. They are cheaper initially but require more maintenance. The right choice depends on your project's geological conditions and budget.
PDC bits can struggle in soft rock because they rely on a shearing action, which may not be as effective. Tricone bits are better suited for soft formations, as they use a grinding action that works well on sand, clay, and other softer materials.
PDC bits generally last longer due to their fixed cutter design and resistance to wear. They are highly durable in hard formations. Tricone bits, while effective in softer rock, tend to wear out more quickly and require more frequent replacements, especially in harder formations.
While PDC bits have a higher upfront cost, their long lifespan and lower maintenance make them more cost-effective in the long run. Tricone bits are cheaper initially but incur higher costs due to frequent maintenance and replacements over time.
