Coal mining has evolved far beyond simply digging deep holes. Today, safety and efficiency drive the industry. One piece of equipment stands at the center of this evolution: the directional drilling rig. But what exactly is it, and why has it become the backbone of modern underground coal operations?
In short, it is a high-tech machine designed to drill precise, curved boreholes. Unlike traditional "straight-line" drills, this industrial powerhouse can steer its bit around obstacles or follow the natural curve of a coal seam. It solves the biggest headaches in mining: gas drainage, water hazard detection, and geological mapping.
Let's dive into the mechanics, applications, and transformative power of this automatic drilling technology.
At its core, a directional drilling rig is a specialized system used to create non-vertical boreholes. In coal mining, we mostly use it for horizontal drilling. Imagine trying to thread a needle through a mile of rock from a distance. That is what this machine does. It uses a hydraulic power system to push a drill string deep into the earth, while a "steering" mechanism at the tip allows operators to change direction.
Traditional drills go where they are pointed and can't change course. If they hit a hard rock layer or a fault, the hole is ruined. The directional drilling rig changes the game. It uses real-time data to adjust its path. This ensures the borehole stays within the coal seam for maximum gas extraction or stays on a specific path to drain water. It is a compact yet powerful solution for tight underground spaces where every inch of accuracy counts toward miner safety.
You might wonder how a machine steers a drill bit deep inside a mountain. It isn't magic; it is advanced engineering. Most industrial systems use a "bent sub" or a mud motor. The hydraulic pressure of the drilling fluid powers a motor right behind the bit. This motor is slightly angled. When the operator wants to go straight, they rotate the entire drill string. When they want to turn, they stop rotating the string and only let the fluid-driven motor turn the bit in the direction of the angle.
Measurement While Drilling (MWD): This is the "brain." It sits near the bit and sends data back to the surface or the operator's console.
Bent Sub: A small, angled piece of pipe that provides the "turn" capability.
Control Station: An automatic interface where operators monitor the pitch, roll, and azimuth (direction) of the hole.
This capability allows for horizontal reaches that can extend over 1,000 meters. By staying within the coal seam, the directional drilling rig creates a massive surface area for methane to escape. This makes the mine much safer before the actual coal cutters arrive.
Why do mines spend millions on a directional drilling rig? The answer is simple: Methane. Coal seams trap gas. If this gas isn't removed, it can explode. This industrial rig is the most effective tool for "pre-drainage."
| Application | Purpose | Benefit |
| Gas Drainage | Removing methane before mining starts | Prevents explosions; improves air quality |
| Water Detection | Identifying hidden underground aquifers | Prevents catastrophic mine flooding |
| Geological Mapping | Finding faults or "washouts" in the seam | Optimizes the path for the shearer |
| Grouting | Injecting cement to stabilize soft rock | Reinforces the mine roof and floor |
The underground environment is unpredictable. By using a directional drilling rig to "see" ahead of the mining face, companies reduce downtime. Instead of stopping production when they hit an unexpected water pocket, they use horizontal boreholes to drain that water weeks in advance. It turns a reactive process into a proactive one.
Modern industrial drilling demands more than just muscle. It requires finesse. A high-end directional drilling rig is almost entirely hydraulic. This provides the massive torque needed to chew through rock while keeping the machine compact enough to fit in a narrow tunnel.
Variable Torque: Hydraulic systems allow the operator to adjust the force based on the rock hardness. This prevents the drill string from snapping.
Hands-Off Operation: Automatic rod handlers pick up and thread new sections of pipe. This keeps workers away from moving parts, drastically reducing injuries.
Data Logging: The automatic system records every foot drilled. This data is vital for building a 3D map of the coal mine's geology.

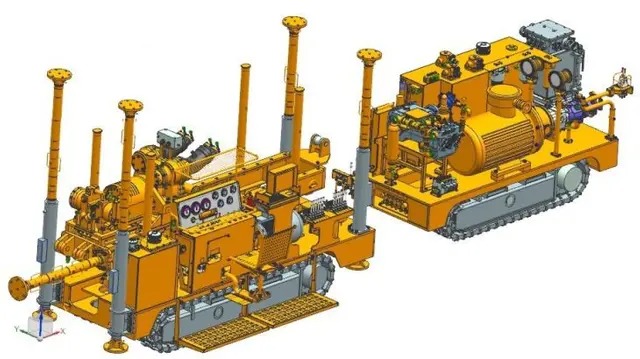

Because the machine is compact, it can be moved between sections of the mine quickly. You don't need to excavate a massive "drill room" anymore. These underground rigs are designed to be mobile, often mounted on tracks so they can crawl from one site to another under their own power.
Coal seams are rarely flat or consistent. They dip, rise, and sometimes thin out. A standard drill would eventually exit the coal and enter the hard rock above or below. This is where the directional drilling rig proves its value. Operators use the rig's horizontal steering to follow the "wavy" path of the coal.
If the MWD sensors show the bit is approaching the roof rock, the operator initiates a "slide." They stop the rotation and use the hydraulic motor to steer the bit back down into the center of the seam. This precision ensures that 100% of the borehole is productive. It is especially useful in industrial settings where the coal is deep and the pressure is high.
Keeping a hole stable over 1,500 meters is tough. The directional drilling rig manages this by maintaining constant fluid pressure. This fluid (often a mix of water and biodegradable additives) cools the bit and carries the rock chips back out. Without this automatic fluid management, the drill would get stuck, costing the mine days of lost labor.
To truly understand what a directional drilling rig is, we must compare it to its predecessor: the rotary "blind" drill.
| Feature | Conventional Rotary Drill | Directional Drilling Rig |
| Accuracy | Low (drift is common) | Extremely High (sub-meter precision) |
| Max Length | Typically < 300m | Up to 2,000m+ |
| Steering | None | Real-time Automatic Steering |
| Safety Role | Limited | Primary Gas/Water Defense |
| Size | Varies | Compact and Track-Mounted |
Conventional drills are fine for short-distance roof bolting. But for industrial coal exploration, they fall short. The directional drilling rig allows a mine to cover a much larger area from a single location. Instead of moving the rig ten times to drill ten straight holes, you park it once and "fan out" multiple horizontal boreholes in different directions. This efficiency is why the underground mining world has shifted so heavily toward this technology.
An industrial machine is only as good as its maintenance. Because the directional drilling rig operates in dusty, wet, and cramped underground conditions, it requires a specific care regimen.
Hydraulic Fluid Filtration: Dust is the enemy. We must change filters constantly to keep the hydraulic valves from sticking.
MWD Sensor Calibration: The "brain" needs to be accurate. We test sensors before every long-distance run to ensure the horizontal path is true.
Track Tension: Since these rigs are compact and move on crawlers, we check the track tension to prevent getting stuck in the mud.
Bit Inspection: We look for "heat checking" or broken teeth. A dull bit requires more industrial force, which puts stress on the entire system.
By following these steps, mines ensure their automatic systems don't fail during critical gas drainage phases. It's about protecting the machine so the machine can protect the miners.
The next step for the directional drilling rig is total autonomy. We are already seeing rigs that can be operated from a surface office, miles away from the underground hazard.
Self-Correcting Algorithms: The rig senses rock density and adjusts its automatic steering without human input.
Electric Power: Moving away from diesel to reduce emissions in underground spaces.
Enhanced Imaging: Using seismic-while-drilling to "see" through 50 meters of solid rock ahead of the bit.
These advancements make the directional drilling rig more than just a tool; it is becoming an intelligent robot. As mines get deeper and more dangerous, this industrial equipment will be the first thing sent in to ensure the environment is safe for humans.
A directional drilling rig is the ultimate solution for complex underground coal mining. It combines hydraulic power with automatic precision to solve the industry's most pressing safety and production challenges. By mastering horizontal navigation, these machines allow mines to drain gas, find water, and map geology with unprecedented accuracy.
Investing in this industrial technology is no longer optional for modern mines; it is a requirement for safe, efficient production. They save lives by removing gas and they save money by streamlining exploration.
At CCTEG Xi'an, we represent the pinnacle of industrial manufacturing in the mining sector. Our "factory" isn't just a production line; it is an innovation hub where we build the world's most reliable underground equipment. We have integrated years of geological research into our directional drilling rig designs, ensuring they thrive in the harshest conditions. Our strength lies in our massive production capacity and our commitment to automatic precision. We don't just sell machines; we provide a full safety ecosystem. When you partner with us, you are leveraging our decades of expertise and a factory that is globally recognized for its compact, high-performance hydraulic systems. We are dedicated to pushing the boundaries of what is possible in coal mining, one borehole at a time.
In most underground coal applications, these rigs easily reach 1,000 to 1,500 meters. Some advanced industrial models can push beyond 2,000 meters depending on the rock conditions.
Yes, in a coal context. It allows for "pre-drainage" of methane from a safe distance. Because the machine is compact and often automatic, fewer workers need to be near the drilling face.
Absolutely. While they are optimized for coal seams, their hydraulic systems provide enough torque to handle the hard shale or sandstone layers typically found underground.
The operator uses the automatic steering system to constantly apply a small upward "pitch." This counteracts gravity and keeps the bit in the center of the seam.
