Views: 0 Author: Site Editor Publish Time: 2025-07-22 Origin: Site
Ever wondered how we peek beneath the Earth's surface without digging? Shallow Seismic Exploration offers the answer. It uses seismic waves to reveal underground secrets, helping us understand geology and engineering needs. In this post, you'll learn what shallow seismic exploration is, its significance, and its diverse applications in geology and engineering.
Seismic waves are energy waves that travel through the Earth, generated by natural events like earthquakes or artificial sources used in exploration. There are two main types of seismic waves: body waves and surface waves.
Body Waves travel through the Earth's interior. They include:
P-waves (Primary waves): These are compressional waves that move fastest and arrive first at seismic detectors. They push and pull particles in the direction of travel.
S-waves (Secondary waves): These are shear waves that move slower than P-waves. They shake particles perpendicular to the wave's direction and cannot travel through liquids.
Surface Waves travel along the Earth's surface and tend to cause the most damage during earthquakes. The main types are:
Rayleigh waves: Move in a rolling motion, similar to ocean waves.
Love waves: Move side to side, causing horizontal shaking.
Each wave type carries different information about the subsurface, making them valuable for seismic exploration.
Seismic waves propagate differently depending on the geological materials they encounter. Their speed and path change with rock type, density, and elasticity.
Refraction: When waves pass from one layer to another with different velocities, they bend. This bending helps identify layer boundaries and depths.
Reflection: Waves bounce off interfaces between layers with contrasting acoustic properties. Reflected waves provide detailed images of subsurface structures.
Surface Wave Propagation: Surface waves travel along the ground and attenuate with depth. They are sensitive to near-surface conditions and are useful for shallow investigations.
Understanding these propagation modes allows geophysicists to interpret seismic data accurately and map underground features.
Seismic waves play a crucial role in revealing the Earth's hidden layers. By analyzing how waves travel, reflect, and refract, scientists can infer:
Layer Thickness: Time taken for waves to return helps estimate the depth of soil, sediment, or rock layers.
Material Properties: Wave velocities relate to rock density and elasticity, indicating rock type or condition.
Faults and Fractures: Discontinuities in wave paths or reflected signals can reveal faults, fractures, or voids.
Subsurface Anomalies: Changes in wave behavior may indicate cavities, groundwater, or mineral deposits.
For example, in shallow seismic exploration, P-waves help map bedrock depth, while S-waves and surface waves assist in evaluating soil stiffness for engineering projects.
Shallow seismic exploration uses several methods to study the earth’s near-surface layers. Each method relies on seismic waves but captures different information about the subsurface. The three main techniques are Shallow Seismic Refraction, Shallow Seismic Reflection, and Multi-Channel Acquisition of Surface Waves (MASW). Let’s explore how each works and where they shine.
This method focuses on how seismic waves bend, or refract, when passing through layers with different speeds. Typically, it examines layers from the surface down to bedrock or basement rock. When waves travel from a slower layer to a faster one, they bend and return to the surface, where sensors detect them.
Refraction helps map layer thickness and identify features like faults or buried rock formations. It’s particularly useful for:
Measuring sediment thickness
Locating bedrock depth
Identifying geological faults or fractures
The data from refraction surveys can reveal changes in material properties and help engineers understand ground stability for construction projects.
Reflection surveys detect seismic waves bouncing off underground layers. When waves hit a boundary between two rock types with different properties, some energy reflects back to the surface. Modern seismographs can capture these reflections with high precision, producing detailed images of subsurface structures.
Reflection is great for:
Imaging complex geological features
Detecting voids, sinkholes, or cavities
Mapping faults and folds in rock layers
This method requires careful setup and equipment but provides rich data for environmental studies, mineral exploration, and engineering assessments.
MASW uses surface waves, mainly Rayleigh waves, to measure the stiffness and elastic properties of near-surface soil and rock. It’s a cost-effective, fast method requiring simple equipment like a hammer and geophones.
Key points about MASW:
Measures shear-wave velocity, which relates to soil stiffness
Can be done in one or two dimensions for detailed profiles
Uses active sources (hammer strikes) or passive sources (ambient noise)
Helps assess site conditions for construction, earthquake risk, or soil characterization
Passive MASW records vibrations from traffic or machinery, allowing deeper investigations without strong energy sources.
Shallow seismic exploration techniques serve many fields by revealing underground features and properties. Their ability to map and characterize near-surface layers makes them vital tools for industries like oil and gas, environmental studies, and geological hazard assessments.
In oil and gas exploration, shallow seismic methods help identify promising drilling sites and understand subsurface conditions before deep drilling begins. They provide:
Mapping of shallow sedimentary layers: This helps locate reservoirs or traps holding hydrocarbons.
Detection of faults and fractures: These features influence fluid flow and reservoir quality.
Assessment of overburden properties: Understanding the layers above reservoirs aids in drilling safety and efficiency.

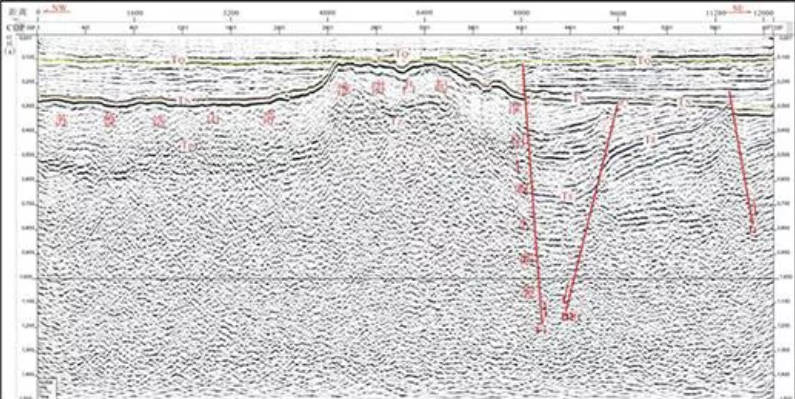

For example, shallow seismic reflection surveys produce detailed images of near-surface structures, allowing geologists to spot subtle traps or seal formations. Meanwhile, refraction methods estimate the depth to bedrock or basement, essential for planning drilling operations.
Engineers and environmental scientists rely on shallow seismic techniques to evaluate ground conditions for construction, remediation, or land use planning. Key applications include:
Soil stiffness and layering: MASW surveys measure shear-wave velocity, revealing soil strength and stability.
Locating underground voids or cavities: Reflection methods detect sinkholes, tunnels, or abandoned mines that could threaten structures.
Assessing contamination spread: Seismic surveys help map subsurface features affecting groundwater flow and pollutant migration.
Foundation design: Understanding subsurface layers ensures safe, cost-effective building designs.
These surveys guide decisions on foundation types, excavation risks, or environmental cleanup strategies, reducing costly surprises during projects.
Shallow seismic exploration plays a crucial role in identifying and mitigating geological hazards. It can detect:
Fault zones: Mapping active or dormant faults helps assess earthquake risk.
Landslide-prone areas: Surveys reveal weak layers or fractures that may trigger slope failures.
Karst formations: Detecting underground cavities reduces risks of sudden ground collapse.
Subsidence zones: Monitoring soil compaction or voids aids in preventing damage to infrastructure.
For instance, seismic refraction can delineate weak or fractured rock layers beneath slopes, informing stabilization efforts. Reflection surveys have been used to investigate sinkholes threatening highways or urban areas.
Shallow seismic exploration depends heavily on specialized equipment to send, receive, and record seismic waves. The quality and precision of this gear directly affect the accuracy of subsurface imaging and analysis. Let's break down the key types of equipment used:
Seismographs are devices that record ground vibrations caused by seismic waves. They convert these vibrations into electrical signals for analysis. Modern seismographs often feature multiple channels, allowing simultaneous recording from many sensors. This helps build detailed images of underground layers.
Geophones are the sensors placed on or just below the surface. They detect ground motion and feed this data into the seismograph. Geophones come in various frequencies; for shallow seismic work, 4.5 Hz geophones are common because they capture the relevant wave frequencies well.
Some popular seismographs used in shallow seismic exploration include:
Geode Seismograph: A reliable, industry-standard unit for near-surface studies.
ES-3000: A low-cost option ideal for refraction, surface wave analysis, and downhole studies.
GeodeDZ: Designed for easy operation in 3D seismic reflection projects.
Stratavisor NZXP: Offers 3 to 64 channels, expandable by networking with other units.
These devices ensure data is captured accurately and efficiently in the field.
To generate seismic waves, we need a source of energy that sends vibrations into the ground. The choice depends on the depth, resolution, and type of survey.
Common seismic sources include:
Accelerated Weight Drops (e.g., PEG40): A heavy weight dropped rapidly onto the ground to create P-waves. This method is popular for active source surveys like MASW and refraction.
Hammer Strikes: Simple, cost-effective impacts used mainly in MASW to generate surface waves.
Explosives or Vibratory Trucks: Used in larger-scale or deeper seismic reflection surveys for stronger signals.
Seismic triggers, such as the HVB-1 Trigger, synchronize the source with recording equipment to ensure precise timing.
Recording systems store the signals collected by geophones. They manage data synchronization, channel selection, and storage. High-quality systems handle many channels simultaneously, enabling complex surveys.
Examples include:
Landstreamers: Mobile arrays that increase productivity by quickly moving sensors across the survey area. Great for MASW, refraction, and reflection.
Smart GNSS Protectors (e.g., GP111): Allow GPS time synchronization and remote data access, improving accuracy and convenience.
Seismic Event Recorders (e.g., EVR-2): Provide precise timing for seismic events, crucial for data correlation.
| Equipment Type | Purpose | Examples |
|---|---|---|
| Seismographs | Record ground vibrations | Geode, ES-3000, Stratavisor |
| Geophones | Detect seismic waves | 4.5 Hz standard geophones |
| Seismic Sources | Generate seismic energy | PEG40 weight drop, hammer |
| Seismic Triggers | Synchronize source and recording | HVB-1 Trigger |
| Recording Systems | Data storage and channel management | Landstreamer, GP111, EVR-2 |
Shallow seismic exploration has seen remarkable technological progress over recent years. Modern equipment now offers higher sensitivity and better resolution, allowing us to detect subtle underground features more clearly. For example, portable seismographs like the Geode series provide reliable data in various field conditions. They are easier to operate and more affordable than older models, making seismic surveys more accessible.
Digital recording systems have replaced analog ones, enabling real-time data visualization and faster processing. Wireless sensor arrays reduce setup time and improve data quality by minimizing cable noise. Additionally, improvements in seismic sources, such as accelerated weight drops and vibroseis trucks, generate more consistent and controllable seismic energy. These innovations enhance the accuracy and efficiency of surveys.
Data acquisition methods have evolved to capture seismic waves more comprehensively. Multi-channel recording systems allow simultaneous collection from dozens or hundreds of sensors, producing detailed spatial data. Techniques like Multi-Channel Analysis of Surface Waves (MASW) benefit from these advances, offering better shear-wave velocity profiles that reveal soil stiffness and layering.
On the processing side, powerful software tools use advanced algorithms to filter noise, correct distortions, and enhance signal clarity. Techniques such as full waveform inversion and machine learning help interpret complex datasets, revealing finer geological details. Automated processing pipelines shorten analysis times and reduce human error.
Furthermore, integrating seismic data with other geophysical methods, like ground-penetrating radar or electrical resistivity, gives a more complete picture of subsurface conditions. This multidisciplinary approach improves decision-making in engineering, environmental studies, and resource exploration.
Looking ahead, shallow seismic exploration will continue benefiting from emerging technologies. Artificial intelligence promises faster, more accurate interpretation of seismic data, identifying patterns humans might miss. Miniaturized sensors and drones could enable surveys in hard-to-reach or hazardous areas, expanding exploration possibilities.
Real-time monitoring systems may become standard, allowing continuous assessment of ground conditions during construction or mining. These systems could detect changes signaling potential hazards, improving safety.
Advances in energy sources might provide stronger, yet environmentally friendly, seismic signals. This would increase survey depth and resolution without disturbing ecosystems.
Interpreting shallow seismic data can be tricky. The near-surface environment often contains complex layers, varying soil types, and irregular geological features. These factors cause seismic waves to scatter, reflect, and refract unpredictably, making it harder to distinguish true subsurface signals from noise.
For example, shallow layers might have similar seismic velocities, causing overlapping signals that confuse the analysis. Also, man-made noise from traffic, machinery, or construction can interfere with data quality. This requires careful filtering and processing to extract meaningful information.
Another challenge is identifying the exact seismic phases—such as distinguishing between direct waves, reflected waves, and refracted waves. Misinterpretation can lead to inaccurate maps of layer depths or material properties. Skilled geophysicists use advanced software and experience to mitigate these issues, but some uncertainty remains.
Shallow seismic exploration focuses on near-surface layers, typically within tens to a few hundred meters. This limited depth range means it cannot replace deep seismic surveys for exploring deeper geological formations.
The shallow depth also restricts the scale of detectable features. Small faults, thin layers, or subtle changes in rock properties might be missed or poorly resolved. In areas with complex geology or large depth variations, shallow seismic methods may struggle to provide a complete picture.
Moreover, the frequency of seismic waves used for shallow surveys affects resolution and penetration depth. High-frequency waves offer better detail but attenuate quickly, limiting depth. Lower frequencies penetrate deeper but reduce resolution. Balancing these factors depends on survey goals and site conditions.
Despite challenges, several strategies improve shallow seismic exploration outcomes:
Careful Survey Design: Tailoring sensor spacing, source type, and survey geometry to site conditions enhances data quality. For example, closer geophone spacing improves resolution in heterogeneous soils.
Advanced Data Processing: Using filtering, migration, and inversion techniques helps clarify signals and build accurate subsurface images. Machine learning is increasingly applied to automate interpretation and reduce human bias.
Combining Methods: Integrating refraction, reflection, and MASW surveys provides complementary information. This holistic approach reduces ambiguities and strengthens conclusions.
Noise Reduction: Scheduling surveys during low-activity periods or using passive seismic methods minimizes interference. Shielding equipment and using vibration isolation also help.
Expertise and Training: Experienced operators and analysts recognize subtle data features and avoid common pitfalls. Continuous training and field practice are essential.
In some cases, shallow seismic results are supplemented by other geophysical methods like ground-penetrating radar or electrical resistivity to cross-verify findings.
Shallow seismic exploration uses seismic waves to study Earth's near-surface layers, revealing geological structures and properties. It aids oil and gas exploration, environmental surveys, and hazard assessments. Technological advancements improve data acquisition and processing, making exploration more precise and efficient. Future directions include AI integration and real-time monitoring systems. CCTEG Xi'an Research Institute (Group) Co., Ltd. offers innovative solutions, enhancing exploration with advanced equipment and services, providing valuable insights for various industries.
A: Seismic waves are energy waves traveling through the Earth, generated by natural events like earthquakes or artificial sources used in exploration.
A: The main types are body waves (P-waves and S-waves) and surface waves (Rayleigh waves and Love waves).
A: MASW (Multi-Channel Acquisition of Surface Waves) measures near-surface soil and rock stiffness using Rayleigh waves.
