Views: 0 Author: Site Editor Publish Time: 2025-10-28 Origin: Site
Drilling through tough rock formations demands robust tools. Have you ever wondered what makes PDC bits so effective? Polycrystalline Diamond Compact (PDC) bits revolutionize drilling with their durability and efficiency. Steel body PDC bits, in particular, are crucial for challenging environments due to their strength and versatility. In this post, you'll learn about different types of steel body PDC bits and their applications in various industries.
Steel body PDC bits are crafted from durable medium-carbon steel, designed to withstand high impact and stress during drilling. Their bodies are machined from solid steel bars, allowing for complex shapes and precise hydraulic channels. This ductility lets them absorb shocks better than matrix bits, making them ideal for tough drilling conditions where impact resistance is critical.
These bits feature PDC cutters pressed into pre-drilled holes on the steel body. The crown surface often receives a hard-facing layer, such as tungsten carbide, to resist wear and erosion. Steel body bits usually have taller blades compared to matrix bits, enabling more aggressive cutting and efficient debris removal. Their design flexibility supports various blade configurations, nozzle placements, and cutter arrangements tailored to specific drilling needs.
Matrix body PDC bits differ fundamentally in material and manufacturing. Made from a composite of tungsten carbide grains bonded with a metallic binder, matrix bits excel in abrasion and erosion resistance. They are produced via molding and sintering processes, resulting in a hard but brittle body. This limits their impact toughness, making them less suitable for highly abrasive or impact-heavy environments.
Steel body bits offer superior toughness and can endure repeated impacts without fracturing. They are easier to repair and refurbish, as worn cutters can be replaced, and the body can be rebuilt multiple times. Matrix bits, while harder and more wear-resistant, are generally not repairable once worn out. They perform best in abrasive formations where erosion is the primary concern.
Steel body PDC bits find widespread use in oil and gas drilling, geothermal wells, mining, and horizontal directional drilling (HDD). Their toughness suits formations with variable hardness or those prone to causing bit shocks. For example:
● Oil & Gas: Steel body bits handle hard rock layers and withstand the dynamic stresses of deep wells.
● Mining: Their durability supports drilling through fractured or abrasive ore bodies.
● Geothermal: High-temperature conditions benefit from steel bits' toughness and repairability.
● HDD: Complex directional drilling requires bits with precise hydraulic designs, achievable with steel bodies.
These bits also cater to low-cost drilling environments where refurbishing extends tool life and reduces expenses.
Choosing between steel and matrix body PDC bits depends on formation characteristics and operational priorities like durability, repairability, and erosion resistance.
Non-coring PDC bits are designed to drill through rock formations without retrieving core samples. Their main goal is to maximize drilling speed and efficiency by completely breaking and removing the rock ahead. These bits are ideal when sample collection is unnecessary, such as in production drilling or wellbore enlargement.
Non-coring bits feature a solid face with fixed PDC cutters arranged in patterns like spiral or radial layouts. The blade count typically ranges from 3 to 8, balancing cutting aggressiveness and durability. The steel body construction allows for taller blades, which improve cutting action and debris removal.
Hydraulics play a crucial role. These bits include strategically placed nozzles and flow channels to optimize fluid circulation. This design helps efficiently clear cuttings from the bit face and bottom hole, reducing bit balling and maintaining high rates of penetration (ROP).
The cutters are pressed into pre-drilled holes, secured firmly to withstand impact. The steel body often receives a hard-facing layer, such as tungsten carbide, to resist wear and erosion. This combination ensures the bit can handle soft to medium-hard formations effectively.
● High Rate of Penetration (ROP): The aggressive cutter layout and tall blade design enable fast drilling in suitable formations.
● Durability: Steel body construction offers excellent toughness, allowing multiple re-runs and easy refurbishment by replacing worn cutters.
● Efficient Cuttings Removal: Optimized hydraulic design prevents clogging and bit balling, maintaining smooth drilling operations.
● Versatility: Suitable for a range of formations, especially soft to medium-hard rocks, common in oil & gas, mining, and geothermal drilling.
● Cost-Effectiveness: Rebuildable nature reduces the need for frequent bit replacement, lowering operational costs.
Overall, non-coring steel body PDC bits provide a reliable, high-performance solution when core recovery isn't required. Their design focuses on maximizing drilling speed, durability, and efficient cuttings evacuation to meet demanding drilling conditions.
For optimal performance, match non-coring PDC bits to formations with consistent hardness and ensure hydraulic systems are properly maintained to prevent cuttings buildup.

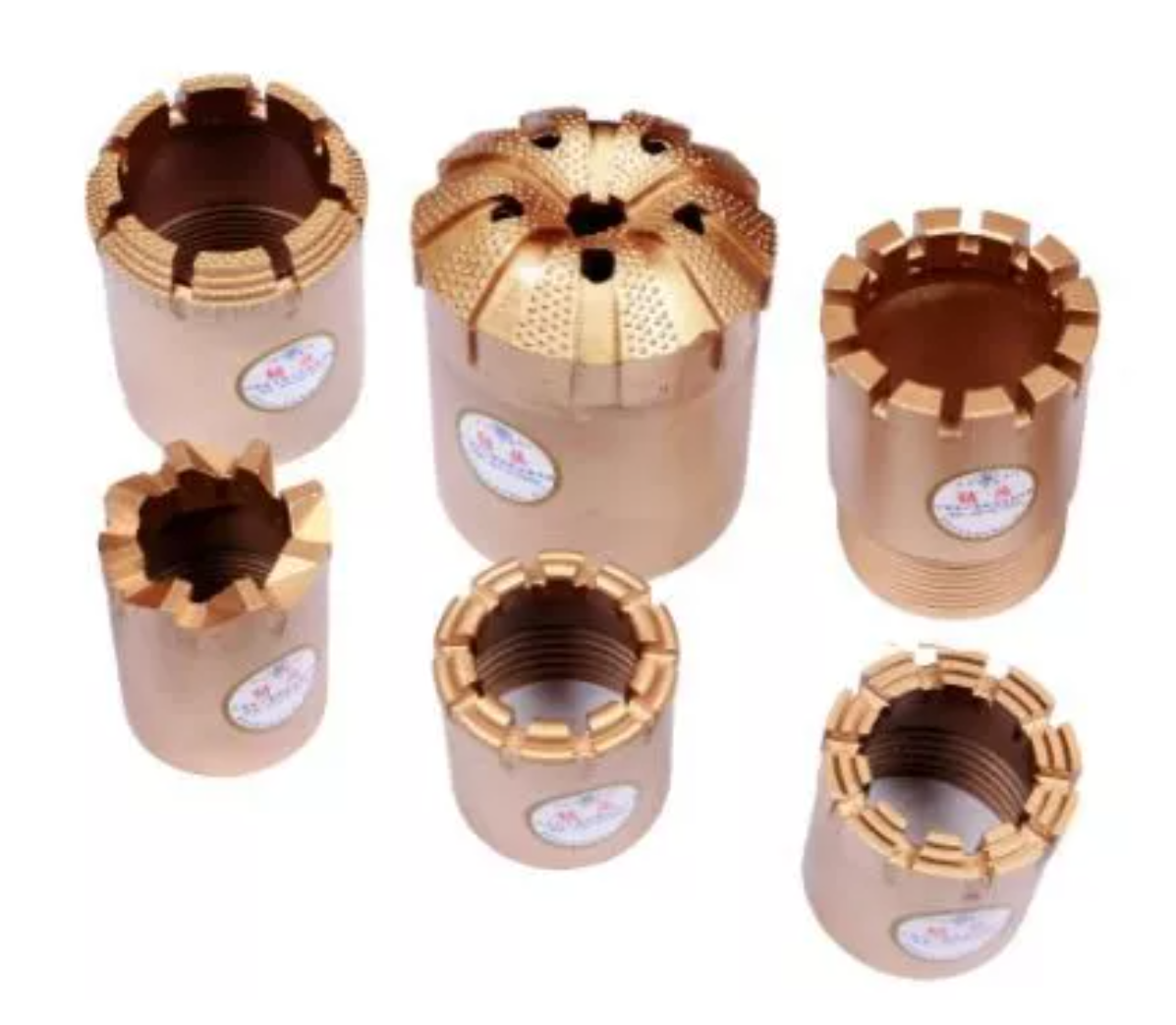

Coring PDC bits are specialized drill bits designed to extract core samples from rock formations while drilling. Unlike non-coring bits, they do not pulverize the entire formation but instead cut around a central hollow section, preserving a cylindrical rock core. These cores provide valuable geological information, aiding exploration, reservoir evaluation, and formation analysis.
The primary purpose of coring bits is to retrieve intact rock samples for laboratory testing, enabling geologists to study properties such as porosity, permeability, and mineral content. This information supports decision-making in oil and gas exploration, mining, and environmental studies.
Coring PDC bits feature a hollow center or core barrel opening, allowing the rock core to enter and be retrieved intact. The cutting structure surrounds this hollow center, forming an annular cutting surface. The steel body construction enables a robust design that withstands impact and stress during coring operations.
Key design elements include:
● Annular Cutter Arrangement: PDC cutters are placed around the core opening, arranged to minimize core damage and ensure clean cutting.
● Core Diameter Variability: Bits come in various sizes to match core barrel dimensions, allowing for different core diameters depending on the application.
● Hydraulic Channels: Strategically placed nozzles and flow paths optimize drilling fluid circulation, cooling cutters and efficiently removing cuttings from the bit face and core barrel.
● Hard-Facing Layers: Tungsten carbide or similar materials coat critical surfaces to resist wear and erosion, extending bit life.
● Blade Height and Shape: Taller blades improve cutting efficiency and debris removal around the core, while blade geometry is optimized to reduce vibrations and core breakage.
The steel body’s toughness allows for complex hydraulic designs and cutter placements, enhancing performance in variable formations.
● High-Quality Core Recovery: The hollow design preserves core integrity, delivering samples suitable for detailed geological analysis.
● Durability: Steel body construction offers excellent impact resistance, allowing the bit to endure harsh drilling conditions and multiple refurbishments.
● Customizable for Formation Hardness: Coring bits can be tailored for soft, medium, or ultra-hard formations by adjusting cutter size, density, and blade design.
● Efficient Fluid Management: Optimized hydraulics ensure effective cooling and cuttings removal, preventing bit balling and core contamination.
● Cost-Effectiveness: Ability to refurbish worn cutters and rebuild the steel body reduces operational costs over multiple drilling runs.
● Versatility: Suitable for use in oil & gas exploration, mining core sampling, geothermal drilling, and environmental investigations.
In summary, coring PDC bits balance the need for intact core recovery with efficient drilling performance. Their steel body design supports durability and customization, making them indispensable tools in formation evaluation.
When selecting coring PDC bits, match core diameter and cutter configuration to the formation type for optimal core quality and drilling efficiency.
Max Flush PDC bits are designed to maximize fluid flow across the bit face, enhancing flushing and cooling during drilling. Their main purpose is to reduce bit balling and cutter overheating, especially in high-temperature and abrasive formations. These bits help maintain consistent drilling performance by efficiently removing cuttings and preventing clogging.
The key feature of Max Flush bits lies in their optimized hydraulic design. They include multiple large nozzles strategically placed to deliver a high volume of drilling fluid directly to the cutting face. This design creates powerful flushing action, which clears cuttings away quickly and cools PDC cutters effectively.
These bits typically have a steel body, allowing for complex machining of flow channels and nozzle placements. The blades are designed to complement the high fluid flow, ensuring debris removal is efficient even in sticky or abrasive formations. The steel body’s toughness also supports taller blades, which aid in aggressive cutting and better hydraulic performance.
Max Flush bits often feature:
● Multiple large-diameter nozzles for increased fluid volume.
● Well-engineered flow paths to minimize dead zones where cuttings could accumulate.
● Hard-facing on cutting surfaces to resist wear from abrasive particles.
● Cutter arrangements optimized for smooth fluid passage and effective rock shearing.
● Enhanced Flushing Efficiency: Large, strategically placed nozzles improve cuttings removal, reducing bit balling and downtime.
● Improved Cutter Cooling: High fluid flow prevents overheating, extending cutter life and maintaining sharpness.
● Smooth Drilling Performance: Efficient cuttings evacuation reduces torque fluctuations and stick-slip, leading to more stable drilling.
● Durability in Harsh Conditions: Steel body construction withstands impact and abrasion, allowing multiple refurbishments.
● Ideal for Abrasive and Sticky Formations: The flushing system prevents accumulation of sticky cuttings, improving rate of penetration.
● Reduced Operational Costs: Longer bit life and fewer trips for cleaning or bit replacement lower overall expenses.
Max Flush PDC bits are especially useful in deep wells or formations prone to bit balling, such as shales or sticky clays. Their design maintains drilling efficiency by ensuring the bit face remains clean and cutters stay cool.
When using Max Flush PDC bits, ensure your mud system can support high flow rates to fully leverage the bit’s flushing capabilities and prevent cuttings buildup.
Center Flush PDC bits feature a centralized fluid exit system. They direct drilling fluid straight through the bit's center, focusing flow at the core of the cutting face. This design aims to improve cooling, cuttings removal, and reduce clogging during drilling. The primary purpose is to maintain bit efficiency by preventing cutter overheating and ensuring smooth drilling, especially under high-pressure conditions.
These bits have a flushing port located at the center of the bit face. The central nozzle provides a direct path for drilling fluid, delivering maximum hydraulic energy where it’s needed most. The steel body construction allows precise machining of the central flow channel and supports taller blades for aggressive cutting.
Key design features include:
● Centralized Nozzle Placement: Fluid exits through a single or multiple nozzles positioned near the bit’s center.
● Optimized Hydraulic Channels: Flow paths direct fluid efficiently to cool cutters and flush cuttings away from the bit face.
● Steel Body Construction: Enables complex internal channels and durable blade structures.
● Hard-Facing on Blades: Tungsten carbide or similar materials coat cutting surfaces for wear resistance.
● Blade Geometry: Designed to complement fluid flow, balancing cutting aggressiveness and debris evacuation.
This design is particularly effective in high-pressure drilling where fluid management is critical to prevent bit balling and overheating.
● Prevents Cutter Overheating: Centralized fluid flow cools cutters directly, extending their life.
● Efficient Cuttings Removal: Focused flushing reduces accumulation of debris on the bit face.
● Reduces Nozzle Erosion: Central nozzle placement limits wear caused by abrasive particles in the fluid.
● Improves Bit Life: Enhanced cooling and debris removal prolong bit durability.
● Maintains Drilling Efficiency: Prevents clogging and bit balling, leading to consistent rates of penetration.
● Ideal for High-Pressure Environments: Performs well where fluid pressure and flow control are essential.
Center Flush PDC bits are widely used in oil and gas drilling, geothermal wells, and other applications requiring precise fluid management. Their ability to maintain clean cutting surfaces and cool cutters under tough conditions makes them invaluable for challenging drilling jobs.
Tip: Ensure your drilling fluid system maintains adequate pressure and flow rate to maximize the cooling and flushing benefits of center flush PDC bits.
Reverse Circulation (RC) PDC bits are designed to use a reverse fluid flow system during drilling. Instead of drilling fluid flowing down the annulus and returning up the drill pipe, RC bits direct fluid down the drill pipe and back up through the annulus. This reverse flow carries cuttings directly through internal channels to the surface. The main purpose is to provide cleaner, less contaminated sample recovery, critical in mineral exploration and other geological investigations.
RC bits improve sample purity by minimizing mixing of cuttings with drilling fluids and reducing contamination from the borehole walls. This enables more accurate analysis of subsurface formations. Additionally, RC bits reduce fluid loss in fractured formations by controlling fluid circulation paths more effectively.
RC PDC bits have a unique internal structure to support reverse circulation. Key design aspects include:
● Central Fluid Return Channels: The bit’s body incorporates internal passages that allow cuttings and fluid to flow upward through the drill pipe rather than the annulus.
● Sealed Cutter Placement: PDC cutters are mounted on a steel body designed to withstand the complex flow patterns and pressures involved in reverse circulation.
● Hydraulic Optimization: Nozzles and flow paths are engineered to direct drilling fluid down the drill pipe efficiently and carry cuttings up without clogging.
● Robust Steel Body: The steel body provides impact resistance and supports complex internal channels needed for reverse circulation.
● Cutting Structure: Cutter arrangements focus on efficient rock shearing and smooth cuttings detachment to facilitate easy transport through return channels.
This design requires precise machining and sealing to maintain fluid flow integrity and prevent leakage between flow paths.
● Enhanced Sample Recovery: Cleaner cuttings flow directly to the surface, reducing contamination and improving geological sample quality.
● Reduced Fluid Loss: Controlled fluid paths minimize loss in fractured or permeable formations.
● Improved Drilling Efficiency: Efficient cuttings transport reduces bit balling and minimizes downtime.
● Durability: Steel body construction withstands impact and allows for multiple refurbishments, lowering operational costs.
● Ideal for Mineral Exploration: RC bits are especially useful in exploratory drilling where sample integrity is paramount.
● Better Hole Cleaning: Reverse flow helps maintain a clean borehole, reducing stuck pipe incidents.
RC PDC bits have become a preferred choice in mining and exploration drilling projects requiring high-quality core sampling and efficient drilling in challenging formations.
Ensure the drilling rig’s fluid circulation system is compatible with reverse circulation to fully leverage RC PDC bits’ sample recovery and fluid loss benefits.
Steel body PDC bits perform well across a wide range of geological formations due to their toughness and design flexibility. In softer to medium-hard formations, non-coring bits excel by delivering high rates of penetration. Their tall blades and optimized hydraulics help maintain efficient cutting and debris removal.
Coring bits, on the other hand, are tailored for formations where intact core samples are vital. They work best in formations where careful cutting around the core is necessary to preserve sample integrity, ranging from soft to ultra-hard rocks.
Max Flush bits shine in abrasive or sticky formations prone to bit balling. Their multiple large nozzles provide superior flushing, preventing clogging and cutter overheating. Similarly, Center Flush bits perform well in high-pressure environments, ensuring fluid reaches the bit center for cooling and cuttings removal, which is crucial in hard or compact formations.
Reverse Circulation bits are ideal for fractured or loose formations where sample contamination and fluid loss are concerns. Their reverse fluid flow helps maintain cleaner samples and reduces fluid loss, improving drilling efficiency in challenging geological settings.
Steel body PDC bits offer outstanding durability due to their medium-carbon steel construction. They absorb impacts better than matrix bits and resist fracturing during tough drilling conditions. This toughness allows them to be refurbished multiple times by replacing worn cutters and rebuilding the steel body, extending their service life and reducing replacement frequency.
Non-coring and coring bits benefit from this repairability, making them cost-effective for repeated use in exploratory or production drilling. Max Flush and Center Flush bits also enjoy enhanced durability since their steel bodies can withstand abrasive wear and hydraulic stresses, while their hard-facing layers protect critical surfaces.
Reverse Circulation bits require precise internal channels, but their robust steel bodies maintain structural integrity under reverse flow pressures. This durability supports multiple refurbishments, which is valuable in exploration projects where sample quality and bit longevity are critical.
Steel body PDC bits generally offer better cost-effectiveness over matrix bits in environments with impact shocks or variable formations. Their ability to be repaired and rebuilt reduces overall expenses by extending bit life.
Non-coring bits provide fast drilling speeds, reducing rig time and operational costs in formations where core recovery isn't needed. Coring bits, although more specialized, help avoid costly delays by delivering quality samples for geological analysis, preventing unnecessary drilling.
Max Flush and Center Flush bits reduce downtime caused by bit balling or cutter overheating, which translates into smoother operations and lower maintenance costs. Reverse Circulation bits improve sample quality and reduce fluid loss, minimizing costs associated with contamination and lost drilling fluids.
Choosing the right steel body PDC bit type based on formation and drilling goals ensures maximum return on investment and operational efficiency.
Always match steel body PDC bit type to formation characteristics and drilling objectives to maximize durability, performance, and cost savings.
Steel body PDC bits offer toughness and flexibility, performing well in various formations. Their durability and repairability make them cost-effective. Selecting the right bit type depends on formation characteristics and drilling objectives, ensuring optimal performance and savings. Future trends in PDC bits focus on enhanced hydraulic designs and material advancements. CCTEG Xi'an provides innovative steel body PDC bits, delivering value through superior durability, performance, and efficiency for diverse drilling applications.
A: A PDC bit, or Polycrystalline Diamond Compact bit, is a type of drill bit used in various industries for efficient rock cutting and drilling.
A: Steel body PDC bits offer superior toughness and repairability, making them ideal for impact-heavy environments, unlike the more brittle matrix body bits.
A: Steel body PDC bits are durable, withstand high impacts, and can be refurbished, providing cost-effective solutions for tough drilling conditions.
A: PDC bits are used in oil and gas drilling, geothermal wells, mining, and horizontal directional drilling (HDD).
