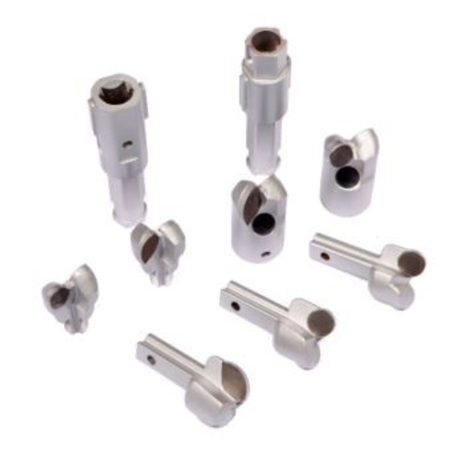

Ever wondered what makes drilling efficient and reliable? PDC bits are at the heart of it all. These advanced tools revolutionize drilling with their unique components. In this post, you'll learn about the important elements of PDC bits and their role in successful drilling operations.
The bit body forms the backbone of the PDC bit. It supports the cutting elements and connects to the drill string. Usually made from steel or a tungsten carbide matrix, the bit body must endure high stress and harsh conditions underground. Steel bodies offer toughness and are easier to repair, while matrix bodies provide superior wear resistance, especially in abrasive formations.
The bit body also shapes the bit's overall profile and houses important features like blades and junk slots, which help remove cuttings during drilling. Its design affects stability and durability, influencing how well the bit performs in different rock types.
The shank is the cylindrical part at the top of the bit that connects it to the drill string. It must withstand extreme torque and axial forces as it transfers power from the rig to the bit face. A strong, well-designed shank ensures a secure connection and prevents loosening or damage during drilling.
Standardized connections, such as API pin threads, allow compatibility with various drill strings. The shank’s quality directly impacts safety and efficiency, making it a critical component for reliable drilling operations.
The bit breaker slot is a groove on the shank designed for tool engagement. It allows operators to grip and handle the bit safely during make-up (assembly) and break-out (disassembly) procedures. This slot prevents damage to the bit face and cutters by providing a secure point for applying torque.
Using the bit breaker slot reduces downtime and protects the bit’s cutting structure, extending its service life. Proper handling through this feature is essential for maintaining bit integrity and ensuring smooth drilling operations.
The bit body, shank, and breaker slot work together to provide strength, stability, and safe handling, which are vital for the PDC bit’s performance and longevity in demanding drilling environments.
PDC cutters are the heart of any PDC bit. They consist of a synthetic diamond layer fused to a tungsten carbide base. This diamond layer is incredibly hard, making it perfect for shearing through rock formations. The tungsten carbide substrate supports the diamond and helps absorb impact, preventing damage during drilling.
These cutters don’t roll or move; instead, they scrape and shear rock continuously. This fixed-cutter design allows for faster penetration rates and longer bit life compared to traditional roller cone bits. The diamond surface resists heat and abrasion, making PDC cutters ideal for a wide range of formations, especially soft to medium-hard rocks.
PDC bits use different types of cutters, each serving a specific purpose:
● Face Cutters: Positioned on the front face of the bit, these cutters do the primary work of breaking and removing rock directly ahead of the bit. They initiate the cutting action and determine the bit’s penetration rate.
● Gauge Cutters: Located on the outer edge of the bit, gauge cutters maintain the hole’s diameter. They protect the bit’s gauge and prevent the hole from becoming too large, which could cause drilling problems and increase costs.
● Upreaming Cutters: These cutters, if included, are placed behind the face cutters. Their job is to slightly enlarge the hole, improving stability and reducing friction as the bit advances. They help maintain hole quality and reduce wear on the bit.
Together, these cutters ensure efficient rock removal, hole stability, and consistent borehole size.
How cutters are arranged on the bit face is crucial. The layout affects cutting efficiency, bit durability, and fluid flow. Cutters are typically aligned in rows along the blades of the bit. These rows form a 3D cutting structure that balances aggressiveness and stability.
● Cutter Density: More cutters per area increase the bit’s durability but may reduce aggressiveness. Lower density allows faster cutting but can wear cutters faster.
● Blade Design: The blades hold the cutters and create junk slots—passageways for drilling fluid and cuttings. Proper blade and cutter placement ensures cuttings clear quickly, preventing clogging.
● Rake Angles: The angle at which cutters contact rock influences cutting forces and chip removal. Optimized rake angles reduce vibration and improve drilling smoothness.
A well-designed cutter arrangement maximizes penetration rate, extends bit life, and maintains steady drilling performance across different formations.
Regularly inspect cutter wear patterns to adjust cutter arrangement in future bit designs, enhancing drilling speed and bit longevity.
Nozzles play a critical role in PDC bit performance by directing drilling fluid to cool cutters and clear cuttings. There are two main types:
● Fixed Ports: These are permanent passages built into the bit body. They provide consistent fluid flow but lack flexibility to adjust flow rates or patterns.
● Interchangeable Nozzles: These removable inserts allow operators to change nozzle size and type depending on drilling conditions. This customization helps optimize fluid velocity and coverage.
Using interchangeable nozzles offers greater control over fluid dynamics, enabling better adaptation to formation types and drilling parameters.
Where nozzles are placed on the bit face matters a lot. Proper placement ensures fluid reaches the cutters effectively and removes debris quickly, preventing bit balling and overheating.
● Face Nozzles: Positioned near the center, they cool the primary cutters and wash away cuttings from the borehole bottom.
● Gauge Nozzles: Located near the outer edge, these protect the gauge cutters and maintain hole diameter by clearing cuttings along the borehole wall.
● Blade Nozzles: Sometimes placed along blades to enhance cleaning in junk slots.
Strategically placed nozzles create a hydraulic pattern that maximizes cleaning efficiency and cooling, leading to smoother drilling and longer bit life.
Hydraulics in PDC bits focus on balancing fluid pressure, velocity, and coverage to enhance drilling performance. Key goals include:
● Cuttings Removal: High-velocity jets flush cuttings away from the bit face, preventing clogging and reducing wear.
● Cutter Cooling: Continuous fluid flow lowers temperature on diamond cutters, preventing heat damage and extending cutter life.
● Bit Balling Prevention: Proper fluid dynamics avoid accumulation of sticky cuttings that can reduce penetration rates.
Designers use computational fluid dynamics (CFD) simulations to refine nozzle size, number, and angles. This ensures optimal fluid flow patterns tailored to specific drilling environments.
Tip: Regularly evaluate nozzle wear and replace or adjust nozzles to maintain optimal fluid flow and bit performance during drilling operations.
PDC bits typically come in two main body types: steel and matrix. Each offers unique benefits depending on drilling needs.
● Steel Body: Made from high-grade alloy steel, these bodies are tough and impact-resistant. They handle shocks well and can be repaired if damaged. Steel bodies usually cost less upfront and are easier to service on-site. However, they wear faster in abrasive formations, which can shorten bit life.
● Matrix Body: Constructed from tungsten carbide particles bonded with a metallic binder, matrix bodies excel in wear resistance. They withstand abrasive rock formations better and maintain shape longer. Matrix bits offer greater durability but are more brittle and harder to repair. They tend to cost more but often deliver longer service life in tough conditions.
Choosing between steel and matrix depends on formation hardness, abrasiveness, and budget. Steel suits softer formations or jobs needing frequent bit changes. Matrix fits abrasive, hard rock where longer bit life justifies higher cost.
The tungsten carbide matrix forms a composite material that resists wear and erosion. It consists of tiny carbide particles fused with a binder metal, creating a tough, dense body.
● Durability: It withstands high temperatures and abrasive forces, protecting cutters and bit structure.
● Resistance: The matrix resists corrosion and mechanical wear, extending bit life in harsh environments.
● Support: It securely holds PDC cutters in place, reducing cutter loss and maintaining cutting efficiency.
Matrix bodies also help maintain gauge integrity and bit profile over long runs, critical for consistent hole size and drilling stability.
Diamond gage pads are reinforced areas on the bit’s shoulder and gauge section. They contain small synthetic diamonds or PDC material embedded to resist wear.
● Gauge Protection: They keep the borehole diameter consistent by resisting abrasion from the formation.
● Extended Bit Life: By protecting critical wear zones, gage pads reduce premature bit failure.
● Stability: They help stabilize the bit in the hole, improving drilling accuracy.
These pads are vital in abrasive formations where maintaining hole size is challenging. They prevent the bit from cutting oversized holes or wearing unevenly, which can cause costly drilling issues.
Select a matrix body with diamond gage pads for drilling abrasive formations to maximize bit durability and maintain precise hole diameter throughout the run.
The number of blades on a PDC bit plays a vital role in its drilling performance. Typically, bits have between 3 to 7 blades, but this varies depending on the application. More blades usually mean a smoother cutting action and better stability. Fewer blades, however, allow for larger junk slots, which help clear cuttings faster.
Blade profiles can be flat, spiral, or parabolic:
● Flat blades provide aggressive cutting but may cause more vibration.
● Spiral blades offer smoother rotation and better cuttings removal.
● Parabolic blades balance aggressiveness and stability, often used in directional drilling.
The blade profile affects how the bit interacts with the formation and how efficiently it removes cuttings. Choosing the right blade count and profile helps optimize penetration rate and bit life.
Cutter layout refers to how PDC cutters are arranged on the blades. Density means how many cutters are packed in a given area. Both factors influence cutting efficiency and durability.
● High cutter density spreads the load across many cutters, improving wear resistance but may slow penetration.
● Low cutter density allows faster cutting but increases wear on each cutter.
Cutters are usually placed in rows along the blades, with face cutters leading and gauge cutters protecting the hole diameter. Upreaming cutters may be added for specific hole enlargement tasks.
Proper cutter layout ensures even wear, reduces vibrations, and improves drilling stability. It also helps maintain consistent hole size and reduces the risk of bit damage.
Gauge protection is essential to keep the borehole diameter stable. Gauge cutters and diamond gage pads protect the bit’s outer edge from abrasion and wear. Without proper gauge protection, the bit may wear unevenly, causing the hole to enlarge and creating drilling problems.
Junk slots are the spaces between blades that allow cuttings and drilling fluid to flow out of the hole. Their size and shape are critical for efficient cuttings removal.
● Wide junk slots improve debris evacuation but reduce blade count.
● Narrow junk slots increase blade count but risk clogging.
Optimizing the junk slot area balances cuttings removal and cutting surface area. Efficient junk slots prevent bit balling and maintain drilling speed.
When selecting a PDC bit, consider the formation type and drilling parameters to choose blade count, cutter layout, and gauge protection that maximize performance and bit life.
PDC bits are the go-to choice for oil and gas drilling due to their efficiency and durability. They handle a wide range of formations, from soft shale to hard sandstone and limestone. Their fixed-cutter design allows for faster penetration rates and longer bit life compared to traditional roller cone bits. This means fewer trips out of the hole, reducing downtime and overall drilling costs.
In exploration and production wells, PDC bits maintain consistent hole size and stability, which is crucial for well integrity. They also perform well in directional drilling, where precise control and smooth cutting action are needed to follow complex well paths.
Geothermal drilling demands bits that can withstand high temperatures and abrasive rock. PDC bits meet these challenges with their heat-resistant diamond cutters and robust bit bodies. Their ability to maintain performance under thermal stress makes them ideal for geothermal wells, where temperatures often exceed those in oil and gas wells.
In mining, PDC bits are used for exploration and production drilling. They efficiently break through hard rock formations, speeding up access to mineral deposits. Their durability reduces the frequency of bit changes, saving time and costs in large-scale mining projects.
Water well drilling benefits from PDC bits’ ability to quickly penetrate various soil and rock types. They reduce drilling time, which lowers project costs and speeds up water access. Their design ensures stable hole diameter, preventing collapse and maintaining well integrity.
In construction, PDC bits are used for foundation piles, tunnels, and other structural drilling. Their precise cutting and durability help meet tight project schedules and challenging ground conditions. The bits’ ability to maintain performance in mixed formations makes them versatile tools in civil engineering.
Match your PDC bit choice to the specific application and formation type to maximize drilling efficiency and reduce operational costs.
Understanding PDC bit components is crucial for optimizing drilling performance. The bit body, shank, and breaker slot ensure strength and stability, while PDC cutters enhance efficiency and durability. Choosing the right PDC bit involves considering material composition and design features tailored to specific applications like oil, gas, geothermal, and construction. CCTEG Xi'an offers advanced PDC bits that provide exceptional value through innovative design and robust materials, ensuring reliable and cost-effective drilling solutions across diverse industries.
A: A PDC bit is a type of drill bit used in oil, gas, geothermal, mining, and construction drilling. It features polycrystalline diamond compact cutters that shear rock formations efficiently, offering high penetration rates and durability.
A: Unlike roller cone bits that crush rock, PDC bits use fixed cutters to shear through formations. This design allows for faster drilling and longer bit life, reducing downtime and overall costs.
A: The bit body supports the cutters and connects to the drill string, enduring high stress and harsh conditions. It shapes the bit's profile, affecting stability and performance across different rock types.
A: The cost of a PDC bit depends on its body type (steel or matrix), cutter density, blade count, and application. Matrix bodies and high cutter densities typically increase costs due to their durability and performance in abrasive formations.
A: Interchangeable nozzles allow customization of fluid flow patterns, optimizing cooling and cuttings removal. This flexibility enhances drilling efficiency and adapts to various formation types and conditions.
